2026 Nirvana 16 Family Triple Bunk

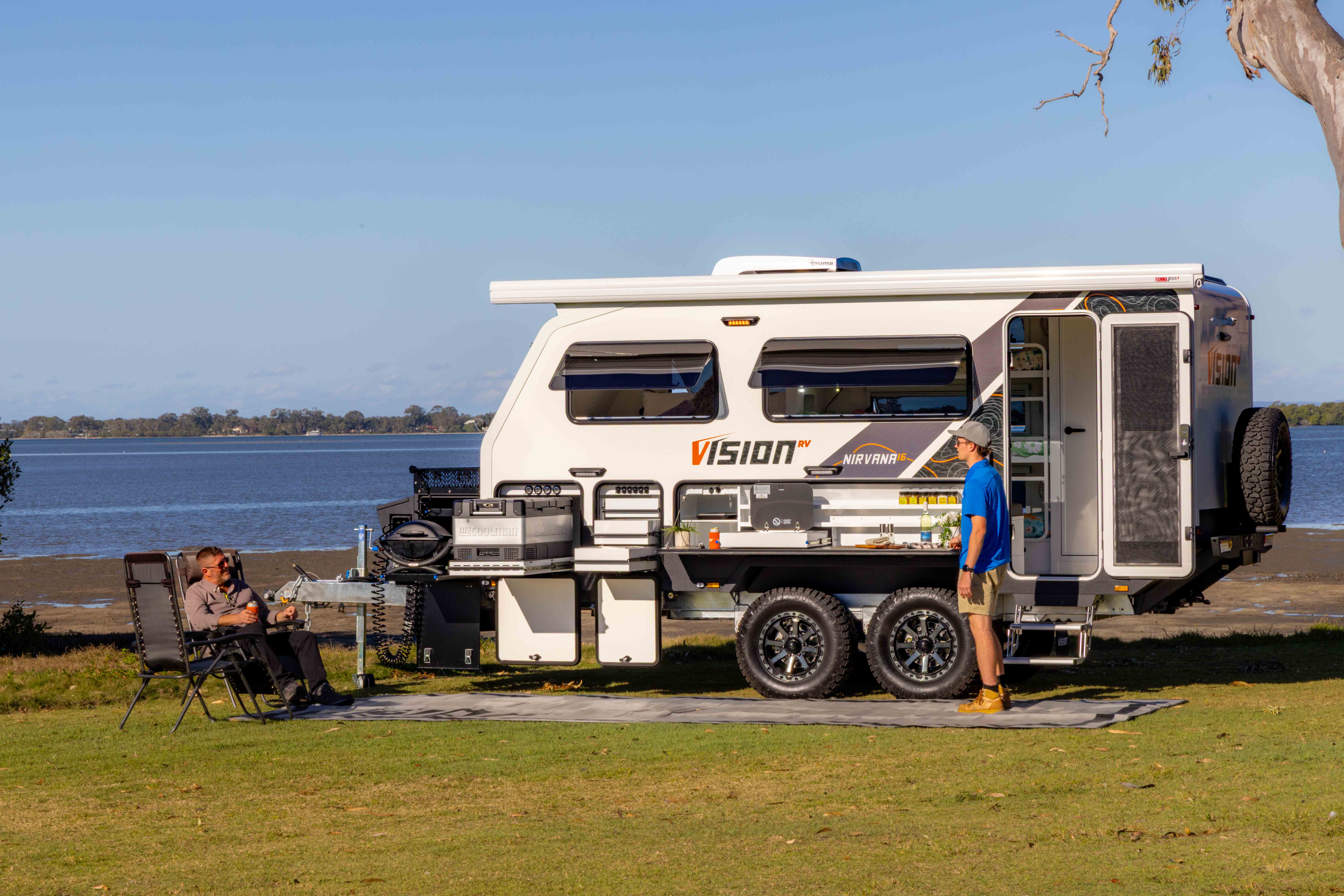

2026 Vision RV Nirvana 16 Family Hard Top

The 2026 Nirvana 16 Family Hard Top is the ultimate "no-setup" hybrid for adventurous families. Built on a tandem axle for rock-solid stability, this 16ft powerhouse combines rugged off-road capability with a highly intelligent internal layout. Constructed with Vision RV’s hallmark 100% timber-free design and a high-density insulated monocoque shell, it provides a safe, dust-free, and comfortable sanctuary for your family in Australia’s harshest environments. With massive standard solar and lithium power, you can stay off-grid longer while keeping the whole family comfortable.

PRICING

TOW AWAY PRICE: $139,990

Power & Solar:

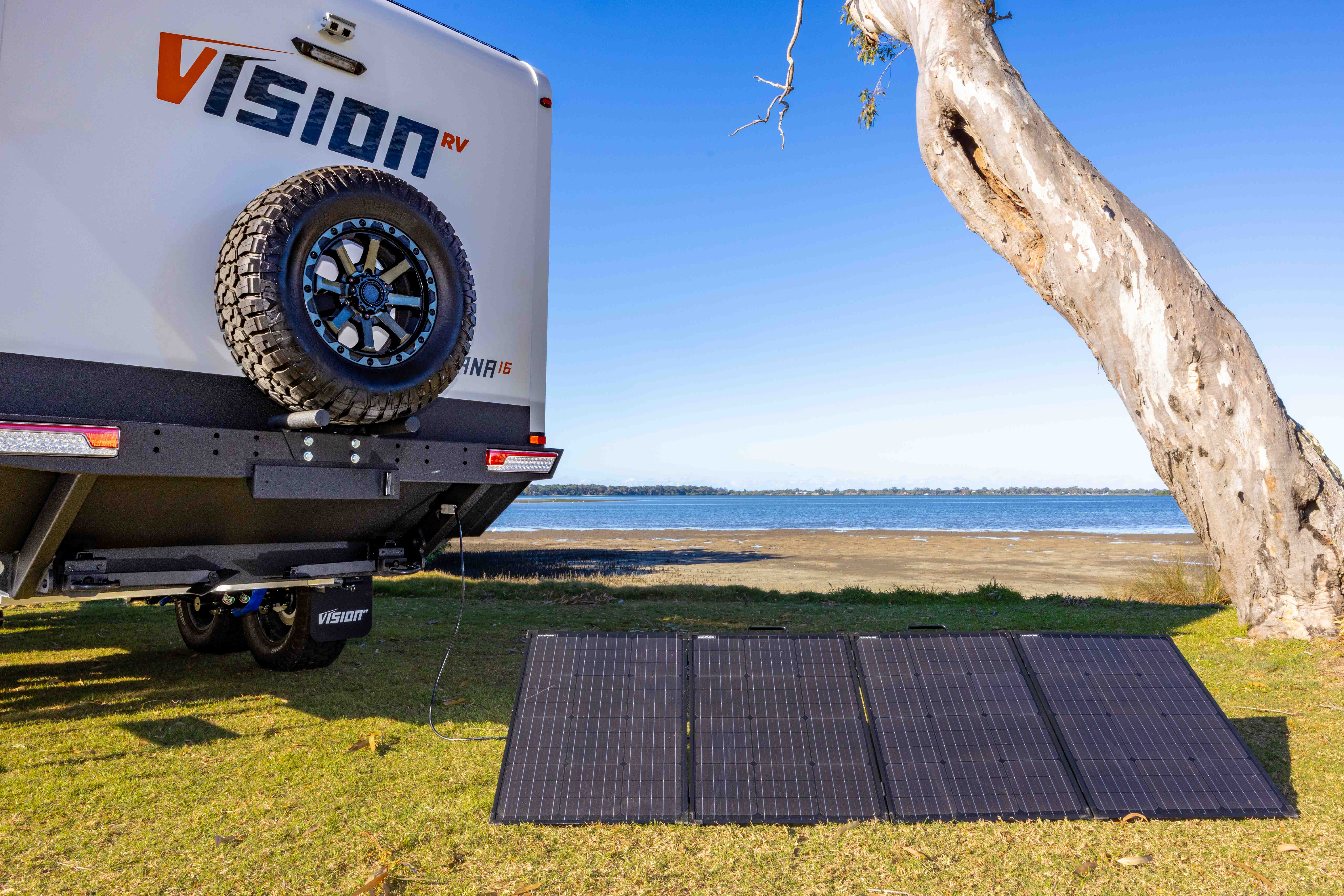

1320W solar array

460Ah lithium battery

3000W / 120A Victron inverter charger

Water Management:

270L fresh water (3 × 90L tanks)

86L dedicated grey water tank

14l Stainless Steel Underbody urine tank

Smart Control:

-Bluetooth enabled electrical system

-Victron battery monitor with phone app integration

Chassis, Suspension & Running Gear

Hot dipped galvanised tandem axle chassis (150mm × 50mm)

Heavy duty trailing arm independent airbag suspension

-Twin shock absorbers per wheel

Wireless remote controlled airbags with variable load adjustment and push button leveling

Cruisemaster DO35 off road coupling

Ventilated disc brakes with Japanese bearings

285/70R17 off road wheels and tyres with +35 offset

Heavy duty rear recovery points

Modular rear bar for added protection

Construction & Body

100% timber free construction, including all cabinetry

Super strong monocoque composite shell for strength and insulation

Electric, insulated pop top roof with effortless setup

Single piece honeycomb composite floor

Heavy duty aluminium structural extrusions

Raptor coated front storage box featuring:

-Dual sliding shelves

-Firewood rack

-Pole carrier

Integrated onboard air compressor with holding tank for inflation and cleaning

Sleeping & Layout

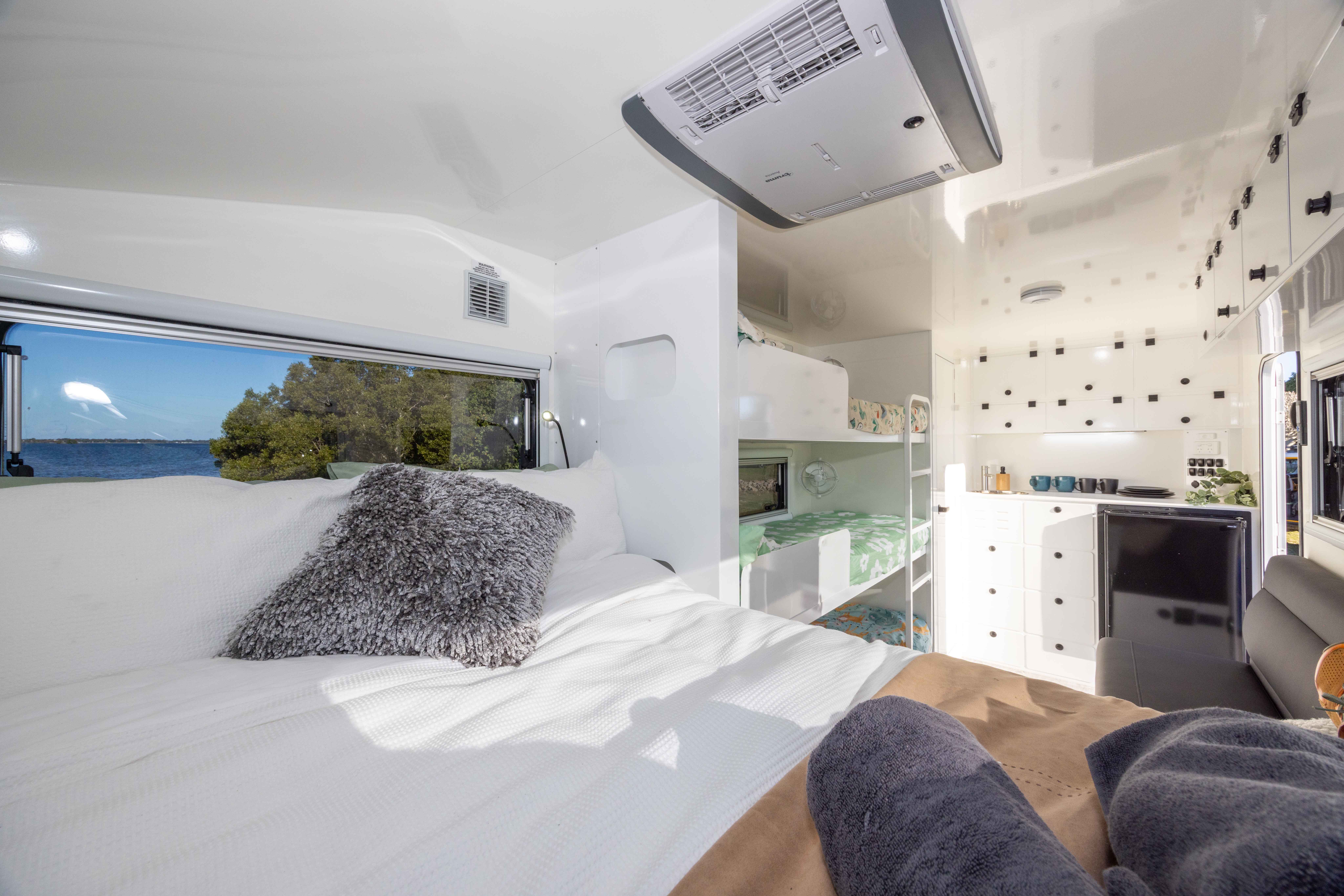

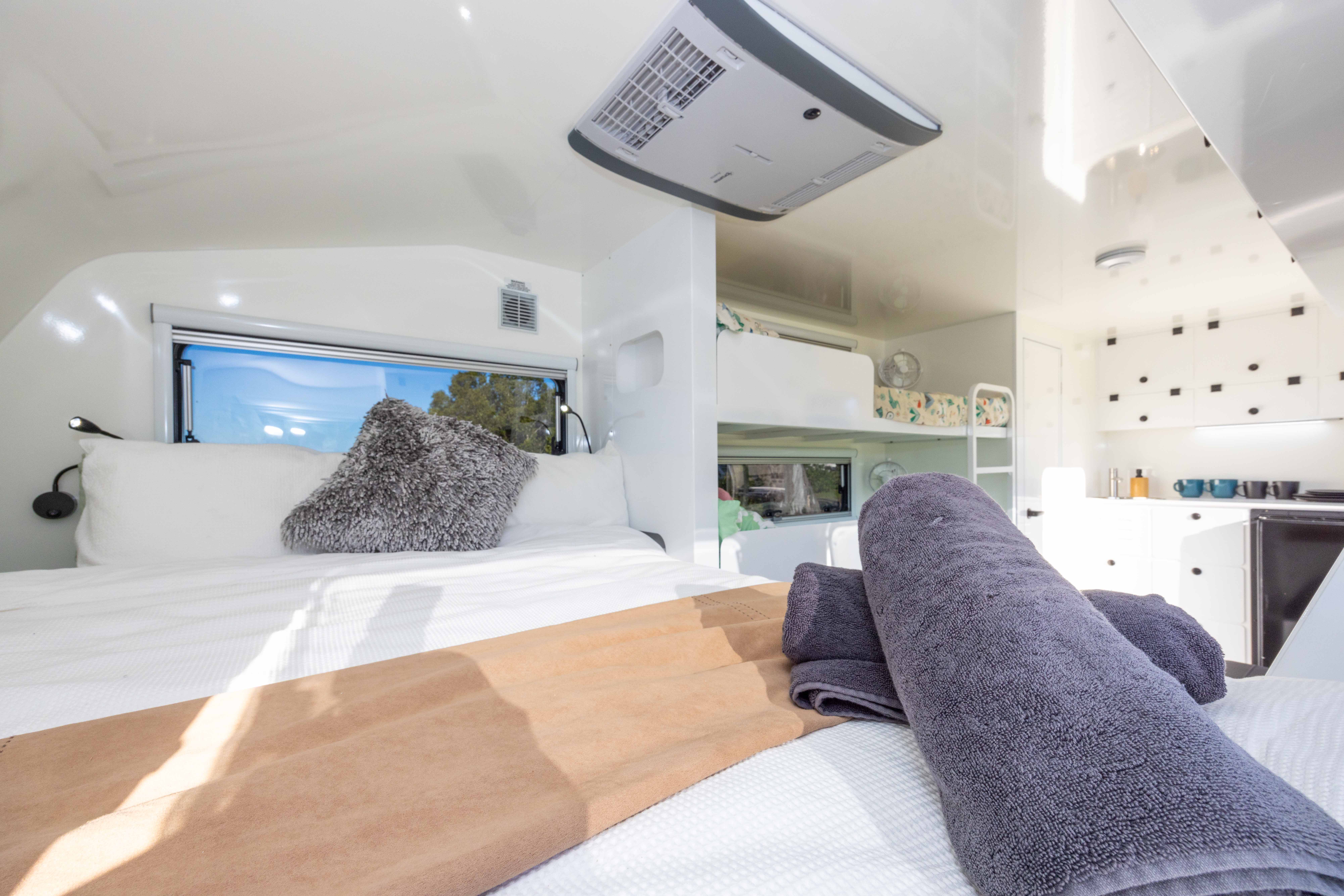

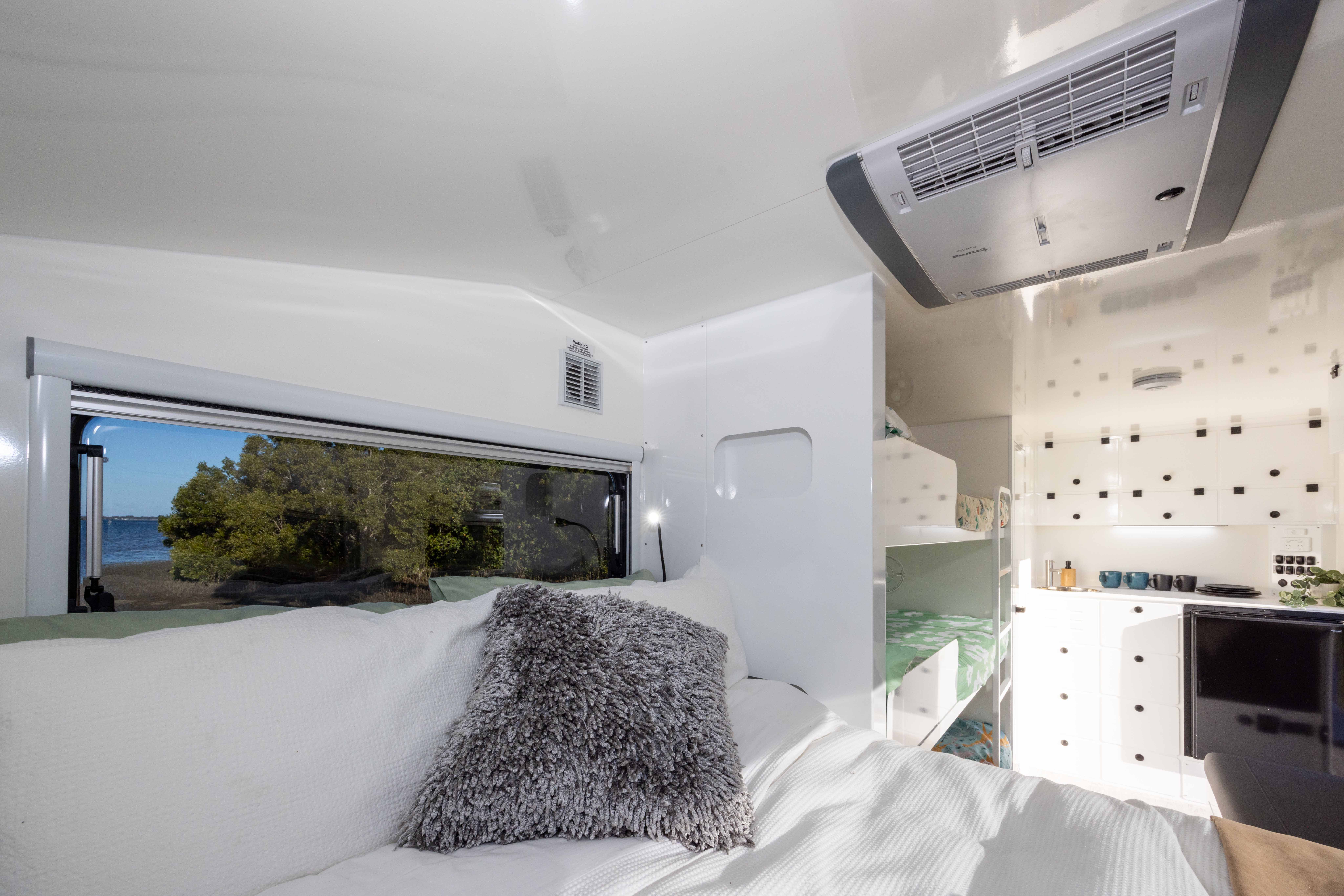

King size pillow top master mattress

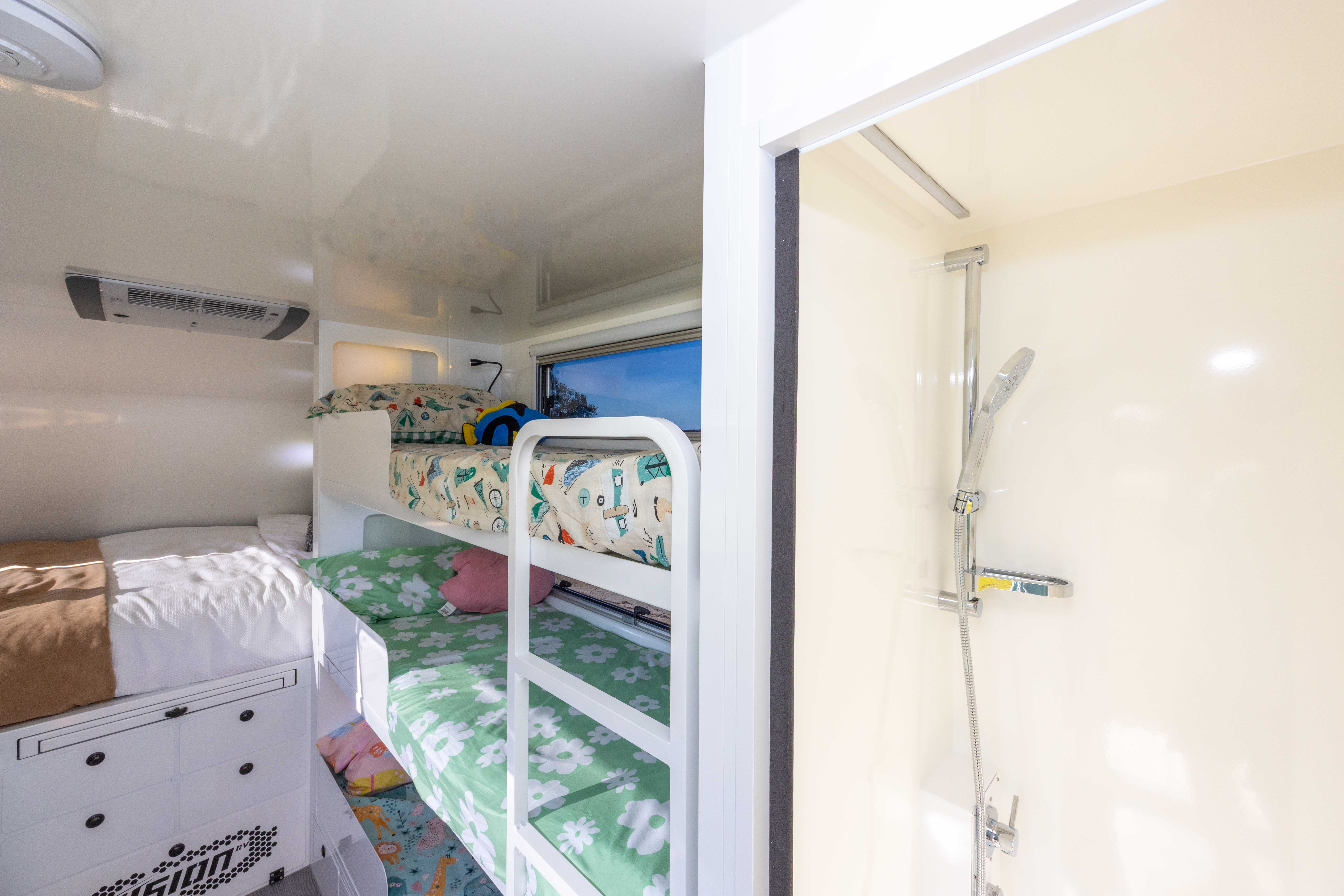

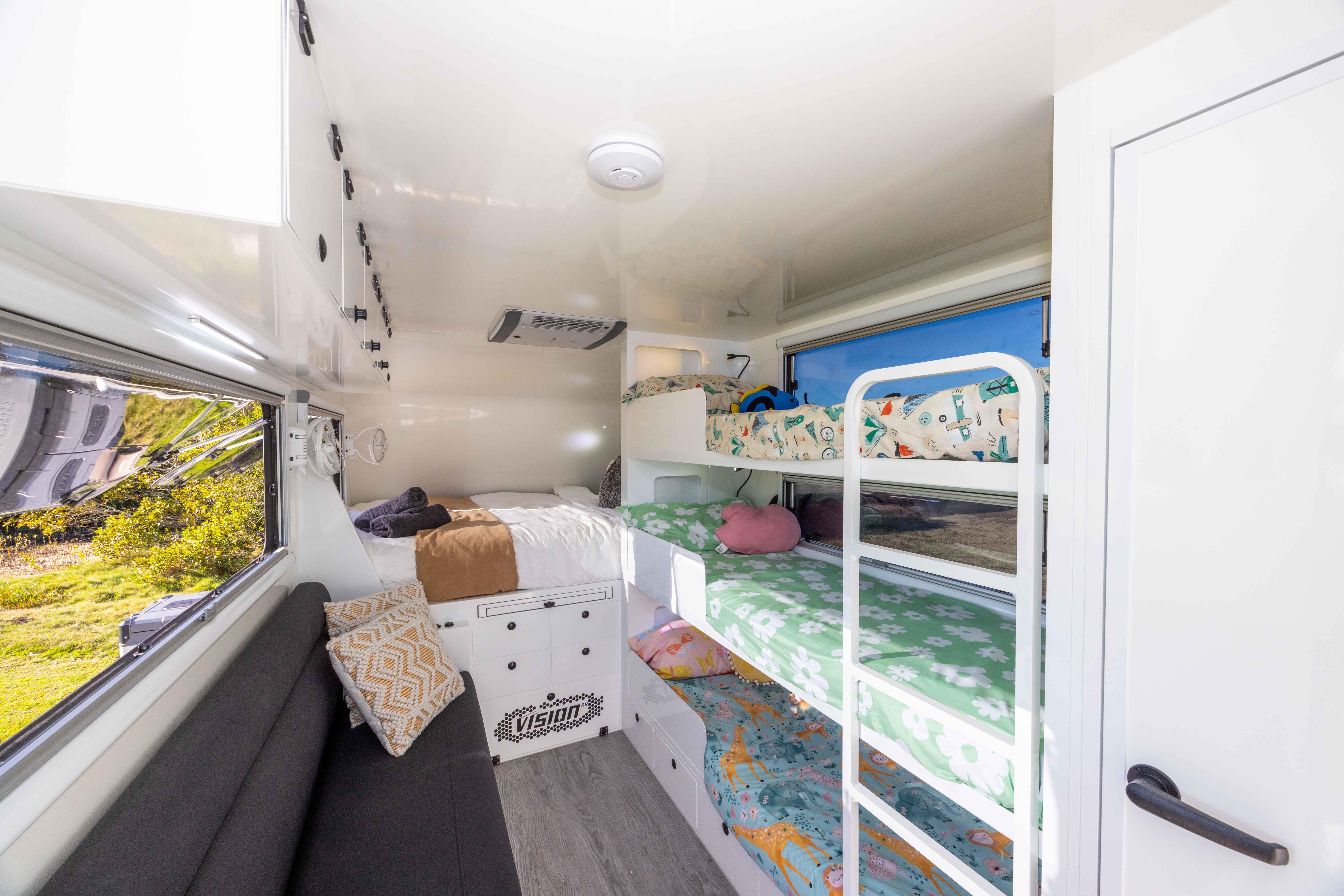

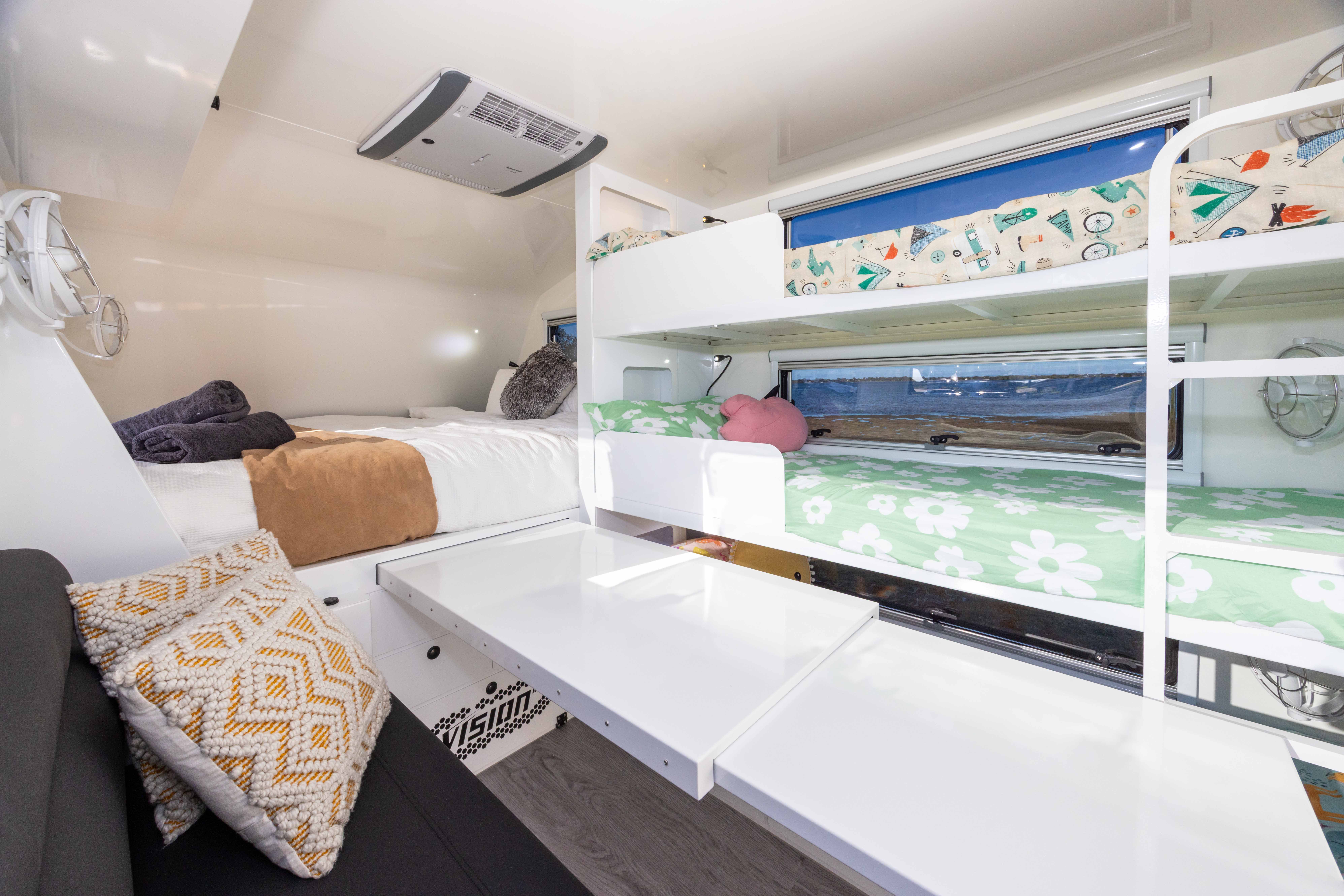

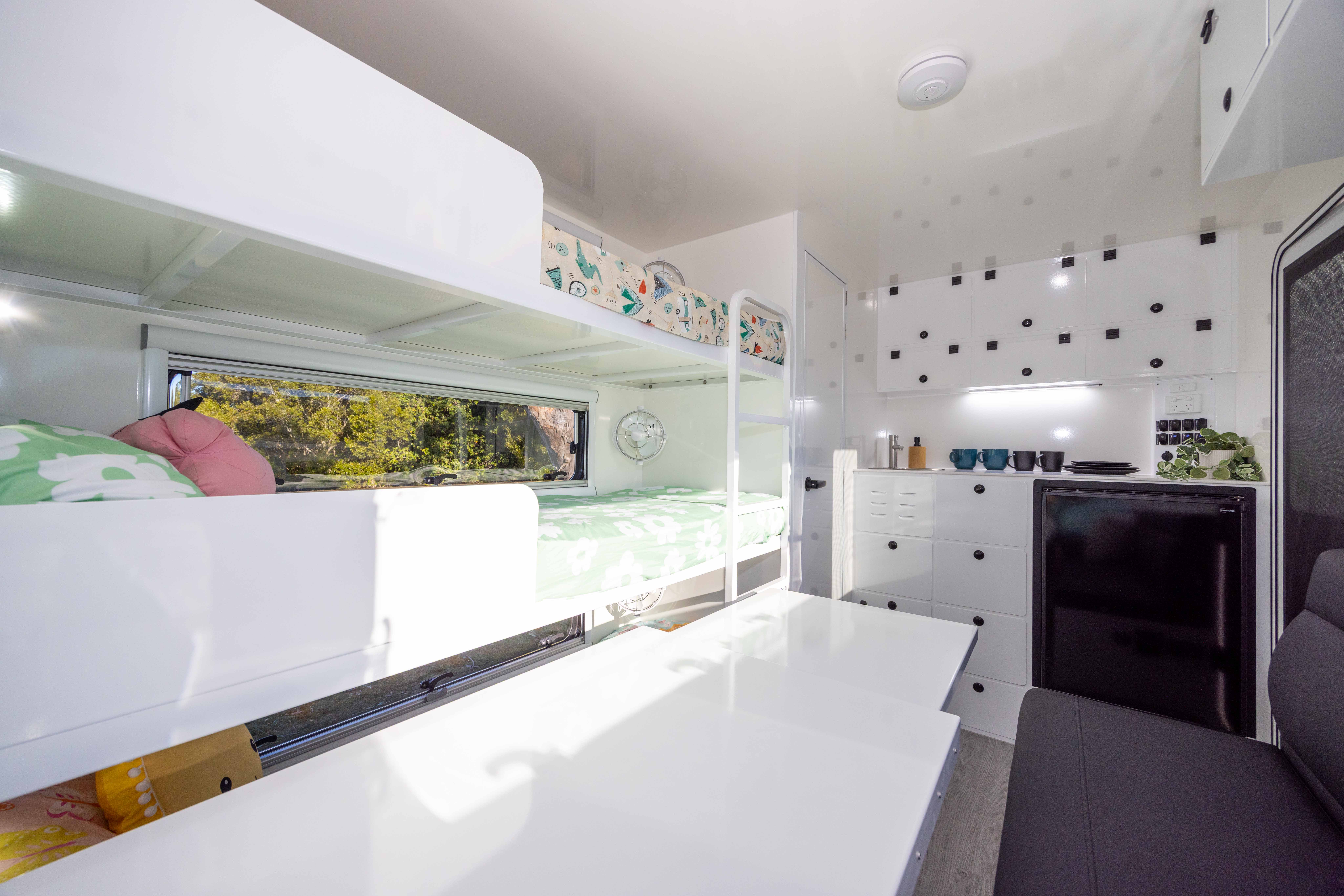

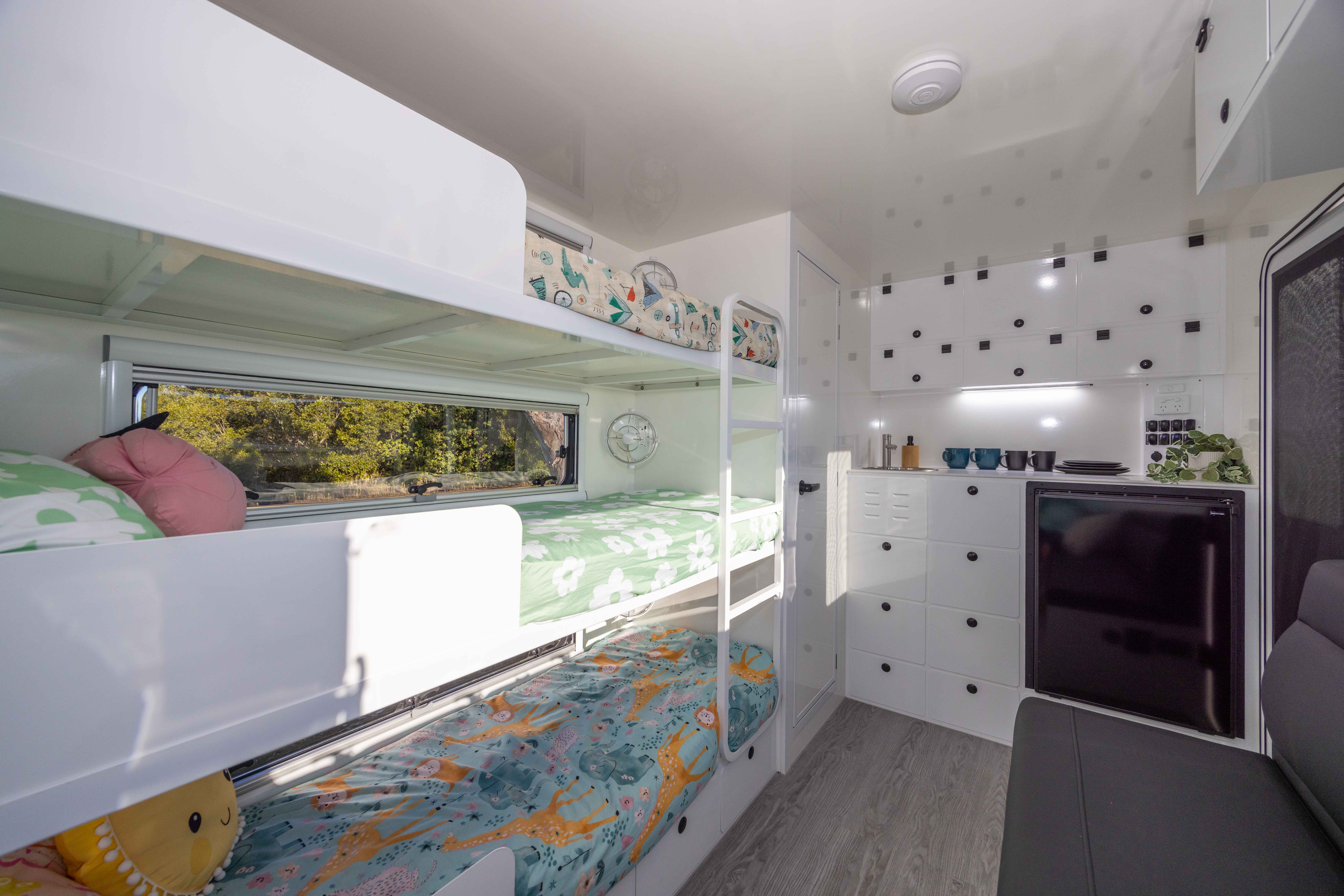

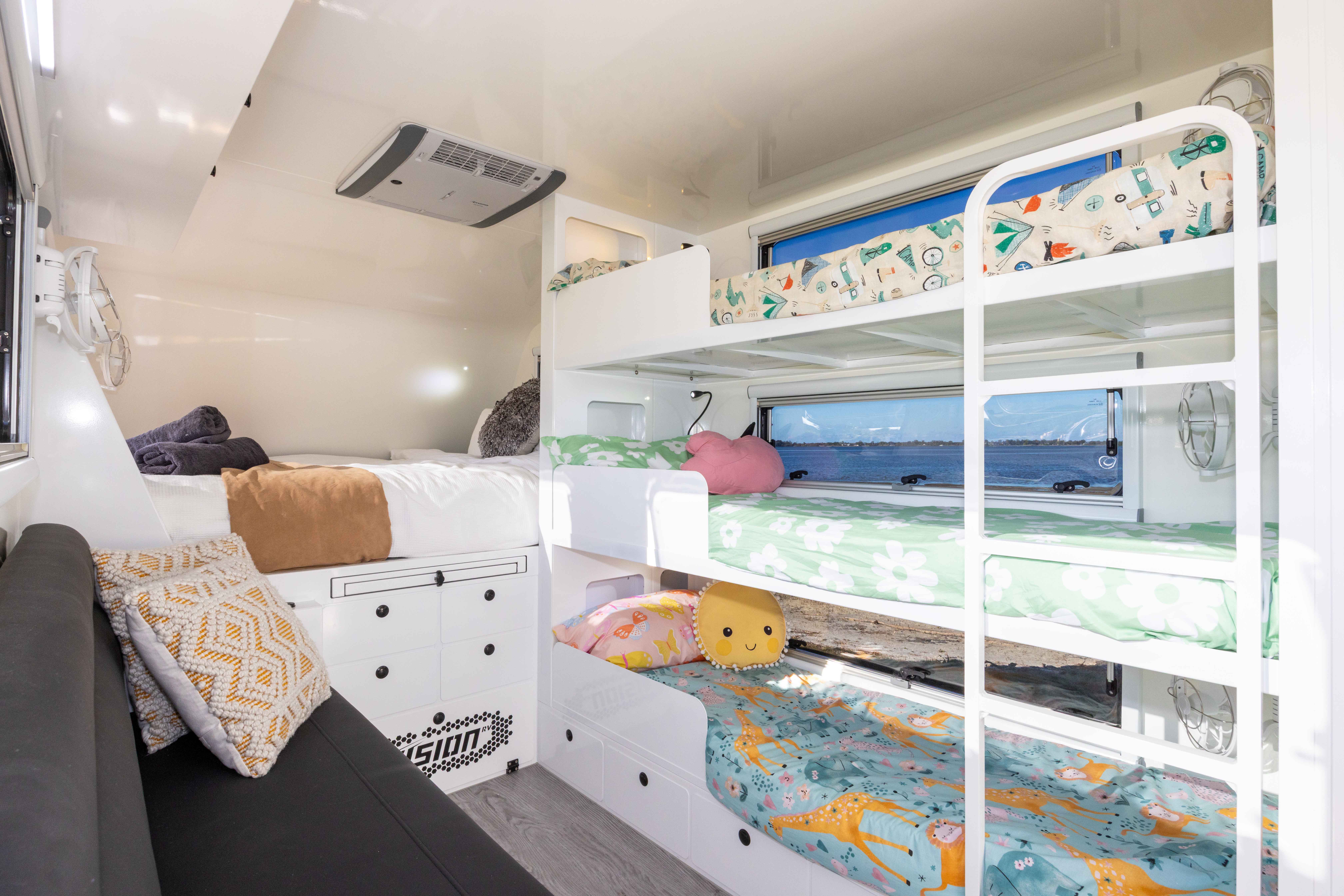

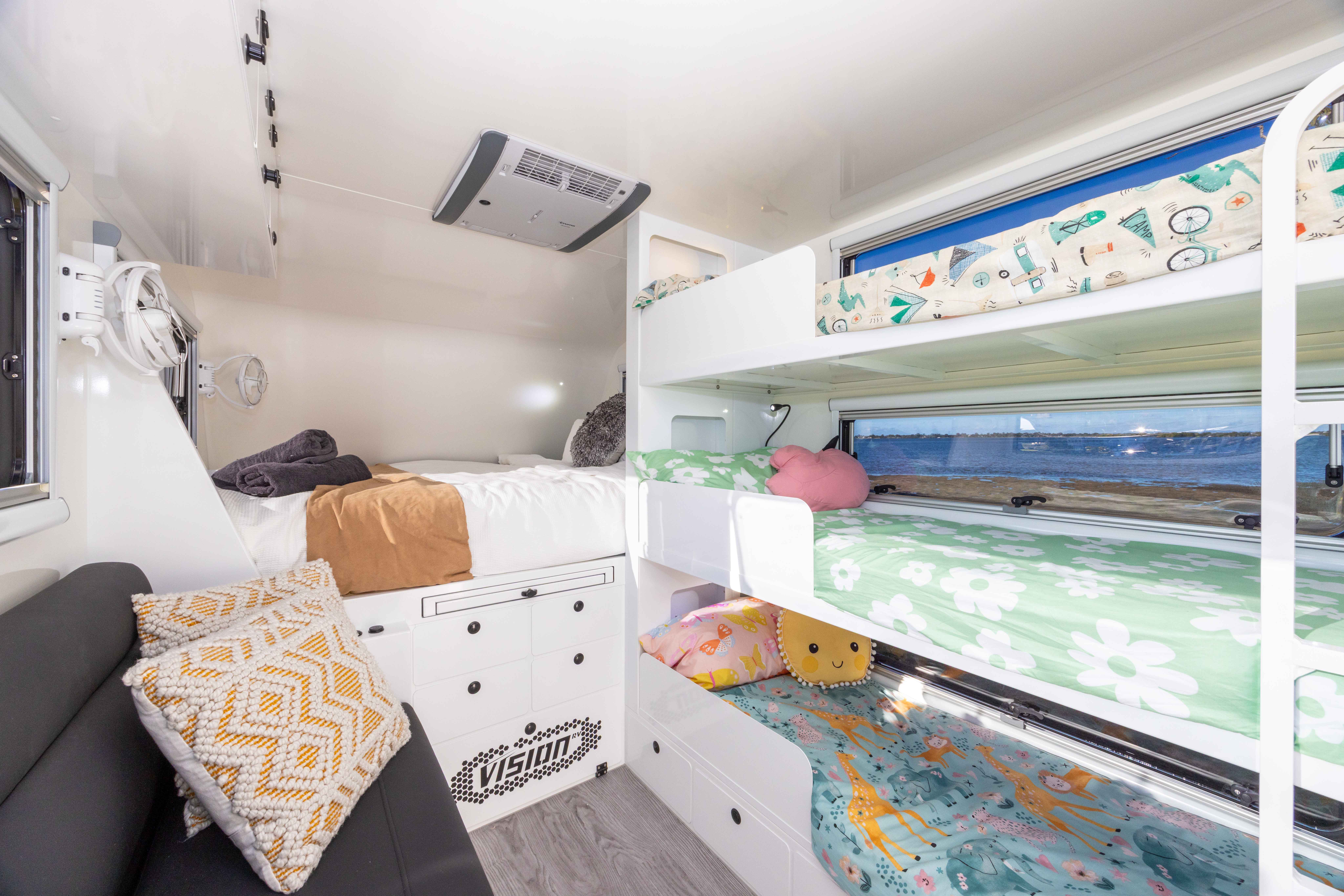

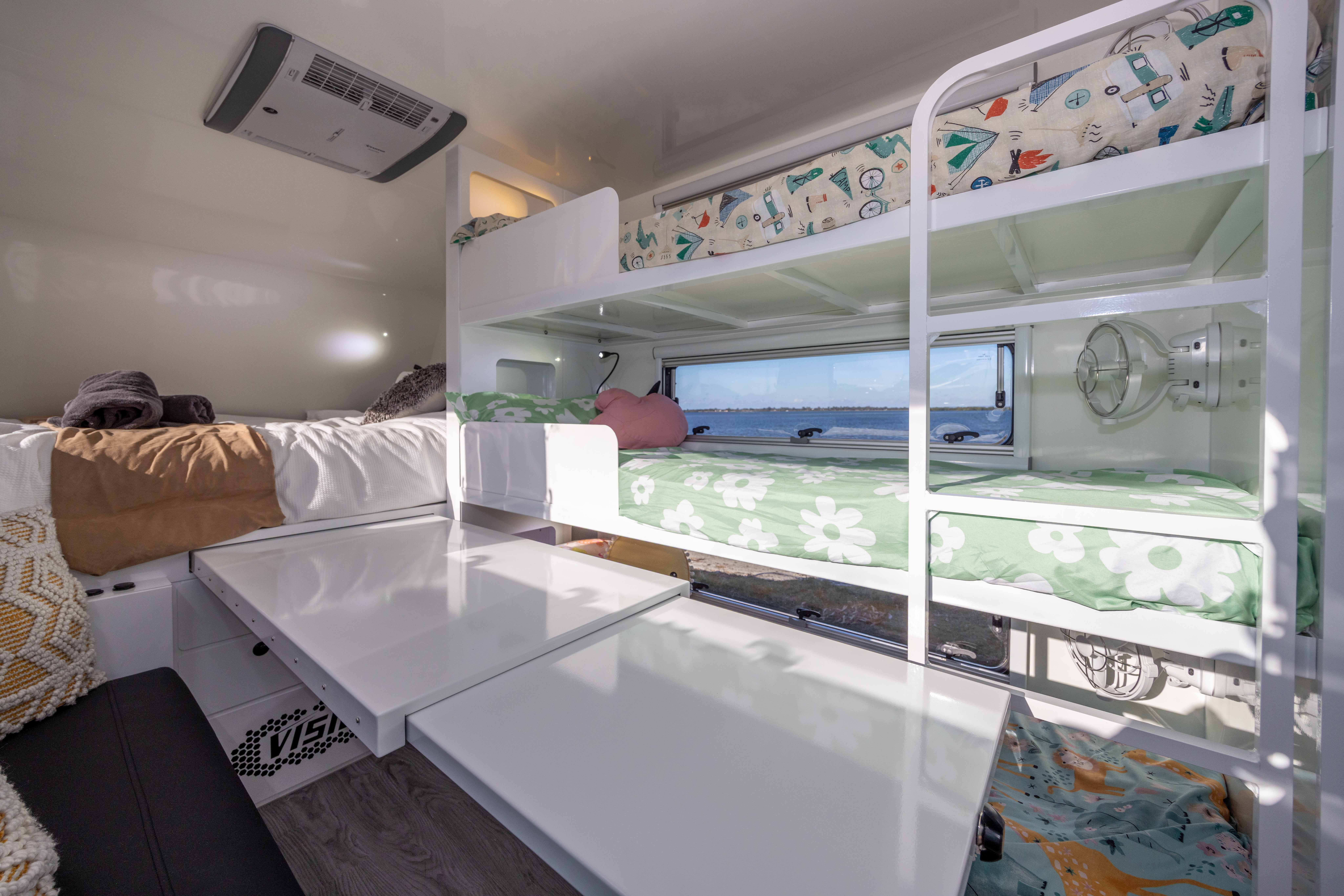

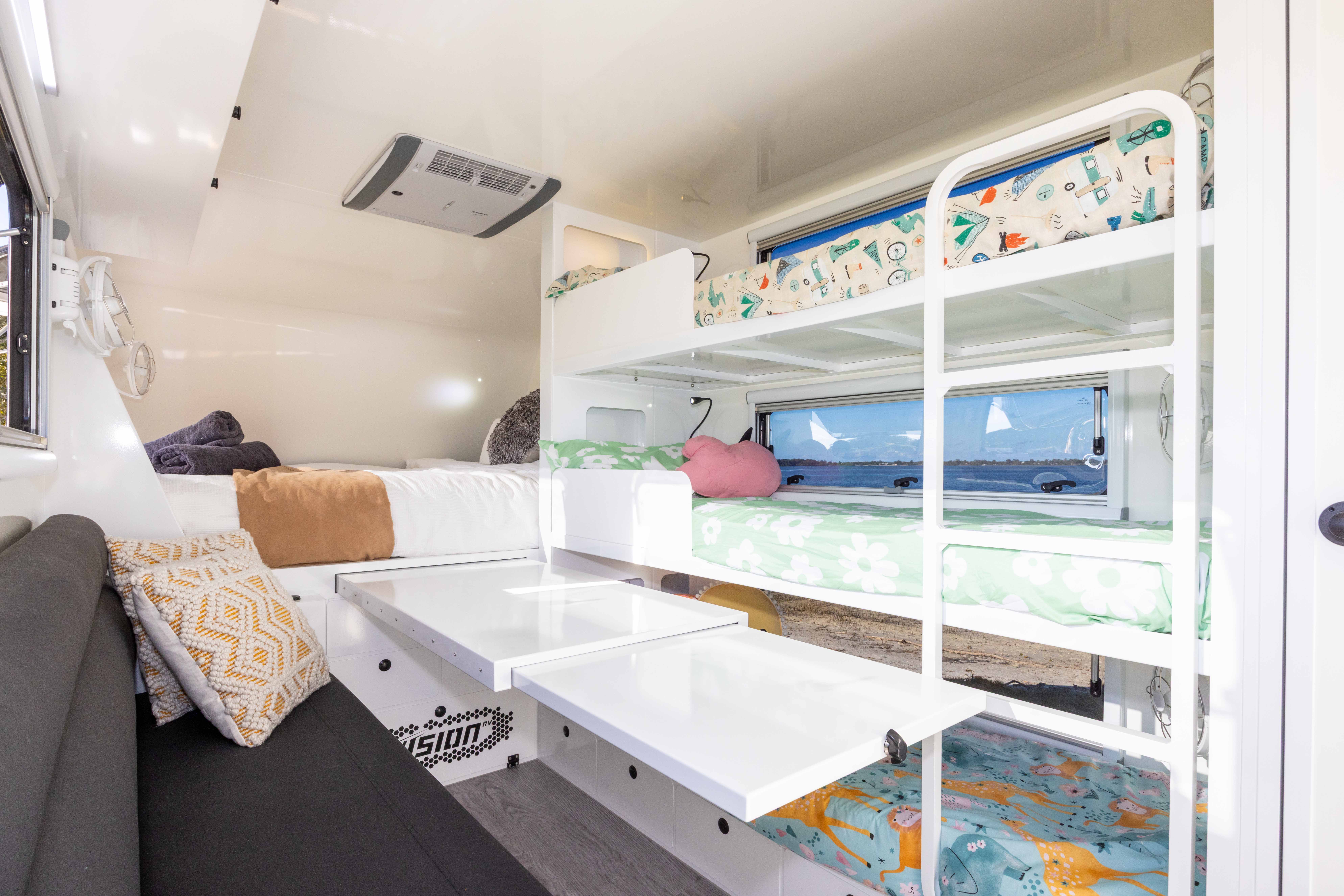

Double Bunk Configuration: Features a clever fold-up system for the upper bunk, allowing the lower bunk to be used as a comfortable seat at the Horizon Table during the day.

Automotive grade leather lounge and dinette seating

Laser cut, folded, and powder coated aluminium cabinetry throughout

Kitchen & Dining

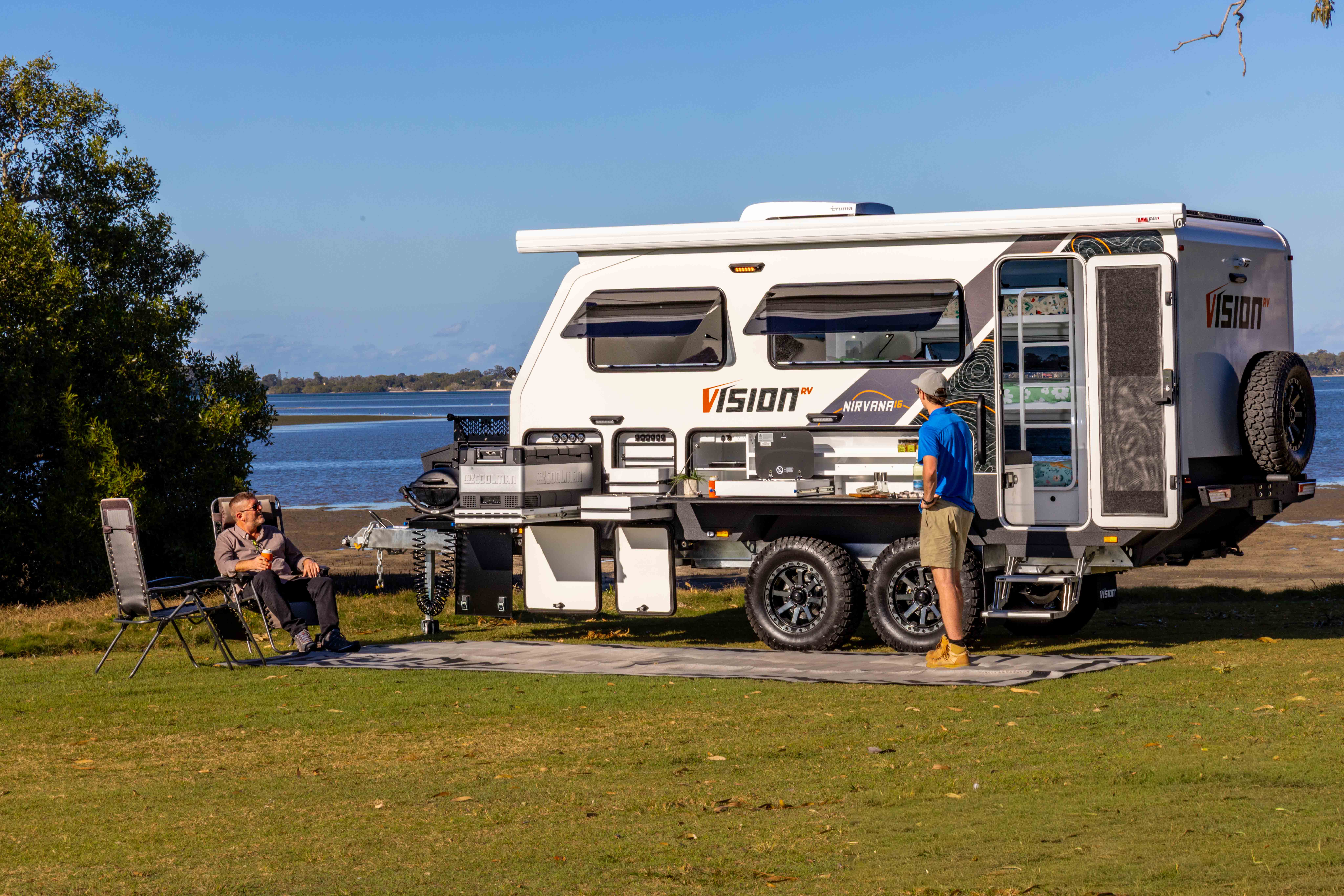

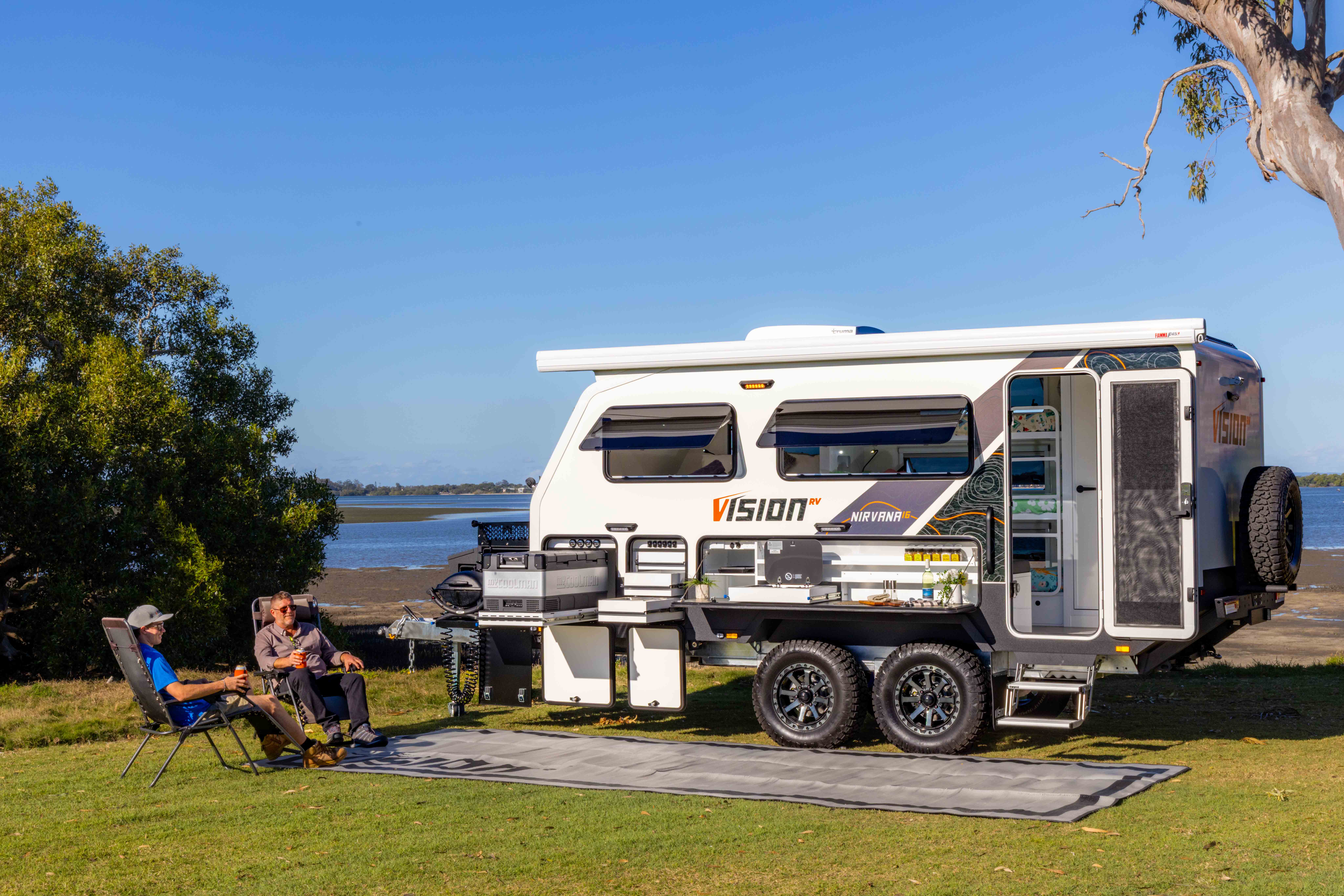

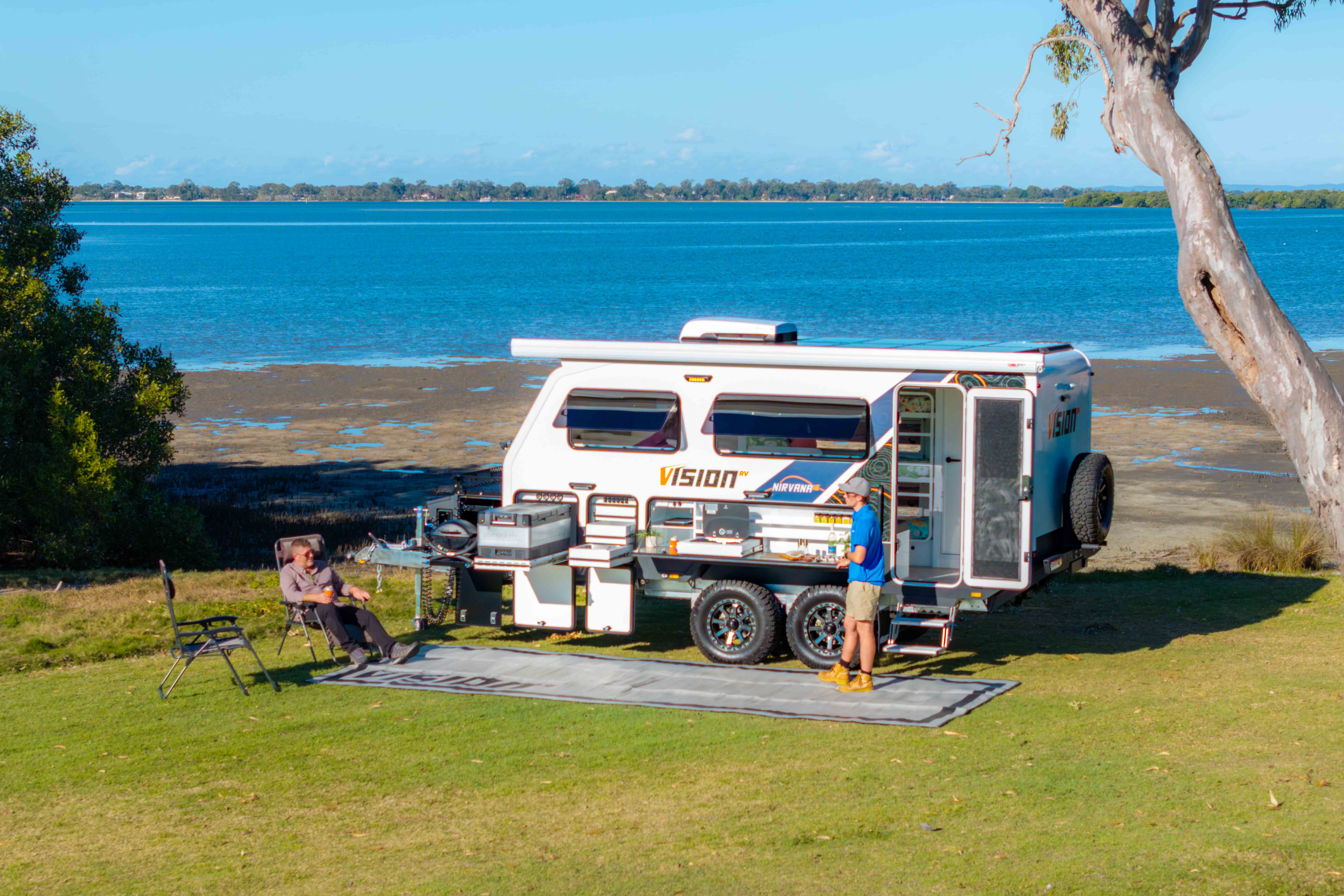

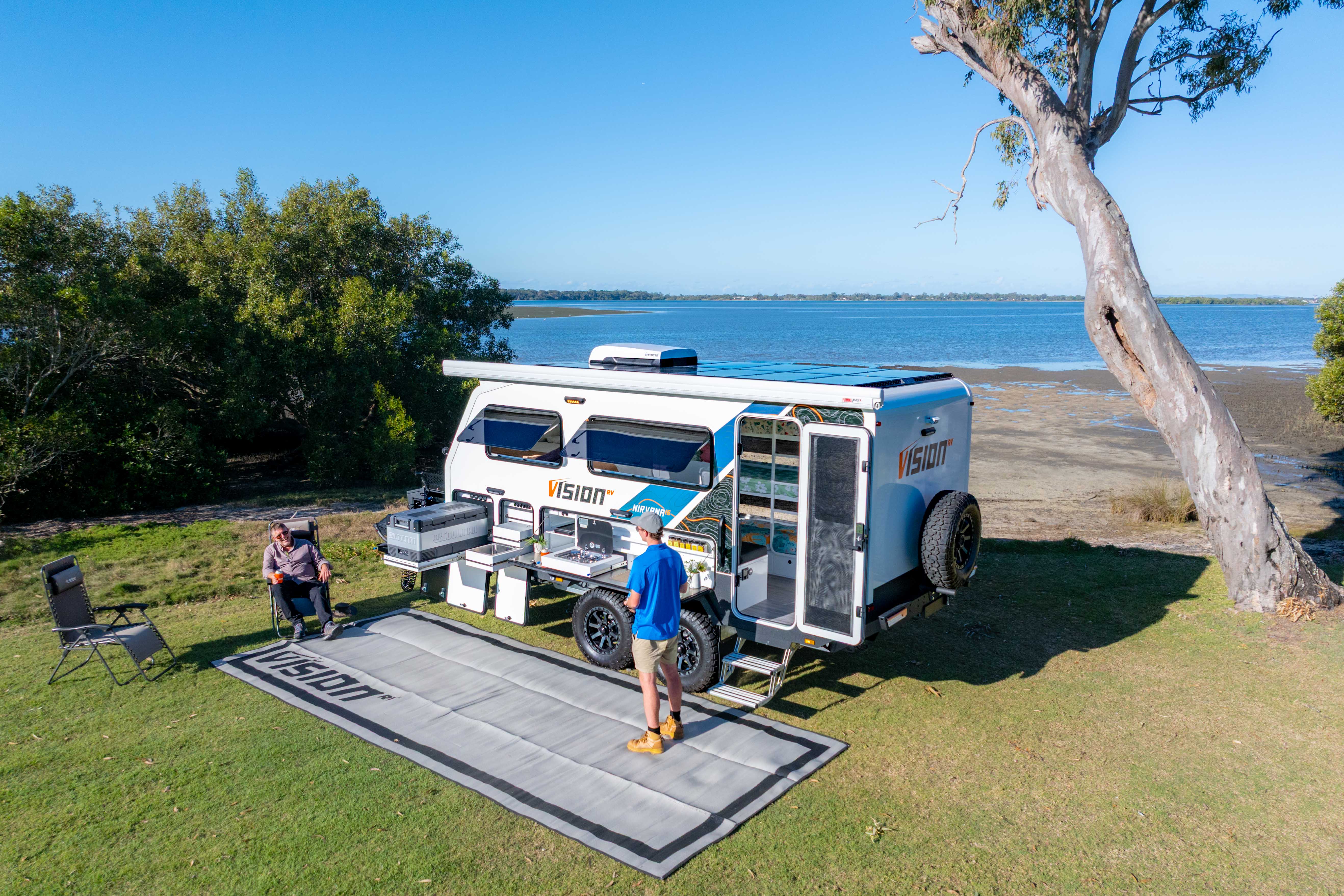

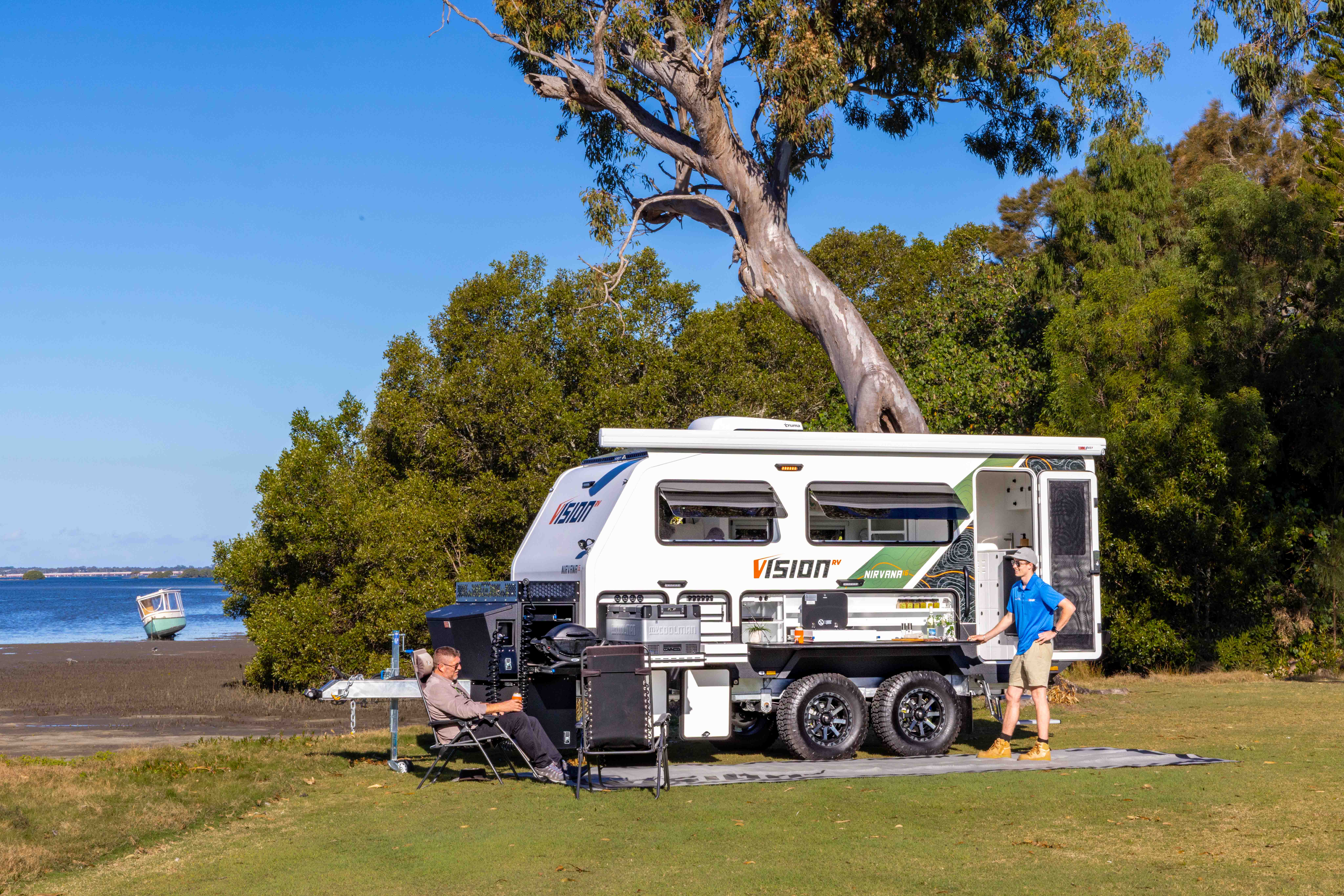

Large external fold out gourmet kitchen including:

- 2 burner cooker

- Sink with hot and cold water

- Slide out pantry drawers

- Expanded internal bench space for indoor food preparation

105L upright compressor fridge/freezer

Commercial grade solid surface acrylic resin benchtops

Versatile internal dining via the Horizon Table and bunk seating system.

Ensuite & Plumbing

Full separate shower and toilet layout

Vision RV compost toilet with separately plumbed 14L urine tank

TRUMA instant gas hot water system with CP Plus control panel

External hot and cold showers on both sides of the toolbox

Electrical & Monitoring

1320W solar system split across two Victron 50A MPPT controllers

Victron 50A DC DC battery charger

3000W Victron inverter powering the full 240V system

External white/amber dimmable LED lighting (sides and rear)

Swivel mounted front external LED spotlight

Dedicated reading lights, fans, and charging points in the master bedroom

Heating, Cooling & Ventilation

Multiple 12V fans for optimal airflow

Dual 4kg gas bottles housed securely in the front storage box

Windows & Internal Fittings

Flat panel Euro-style windows with integrated block-out blinds and flyscreens.

Premium locks and catches designed specifically for off-road vibrations.

Plus Much More!
