ELYSIUM 21'6
Luxury meets durability - enjoy all the creature comforts you've come to love without compromise on strength.
ATM: 4500KG
OVERALL LENGTH: 9.20m
APPROX TRAVEL HEIGHT: 3.12
TRACK WIDTH: 2.0m
VISION RV OFF ROAD TESTING

Floor Plan
Configurations can change depending on model! Come visit us on the Sunshine Coast to see this in person.

HIGHLIGHTED FEATURES
(THERE IS MORE!)
- Huge external kitchen, hot & cold tap, shelves, pantry and powerpoints
- Garmin Connect Dual Tablet (mobile and fixed) for smart system control including but not limited to;
- Lights internal and external, all dimmable
- Airbag Control, manual, wireless, and auto levelling either on site or multi situation ride height - Massive 274 litre, fridge / freezer
- Reverse cycle air-conditioner
- Induction cooktops, plus below counter multi function microwave oven - everything you need to cook inside and outside your van
- Endless solar and battery with powerpoints at all logical locations
- Dedicated fans, reading lights and charging points for queen size master bed
- Front storage box with dual sliding shelves and firewood rack / shelf
- Dual hot and cold outdoor showers

7 Year Limited Warranty on all Models
Feature List
Electrical
- Garmin Connect 50 Digital Switching System via Dual Tablets, one fixed and one mobile usable from vehicle for air bags and dust reduction system + App
- Massive 460ah lithium battery standard, upgradable to 920ah
- 3000W/120A Victron inverter charger unit
- 1540W solar 14 panels upgradable to 1760 solar 16 panels
- 1760W solar 16 panels
- Victron 50amp DC-DC battery charger
- 3x Victron 50A MMPT solar controllers (solar array divided into three MPPT's)
- Victron Smart Shunt battery monitor displayed in Garmin & Cervo GX Communication centre with remote access
- White & amber external dimmable lights, both sides and rear
- Front external LED spotlight on swivel mount
Appliances

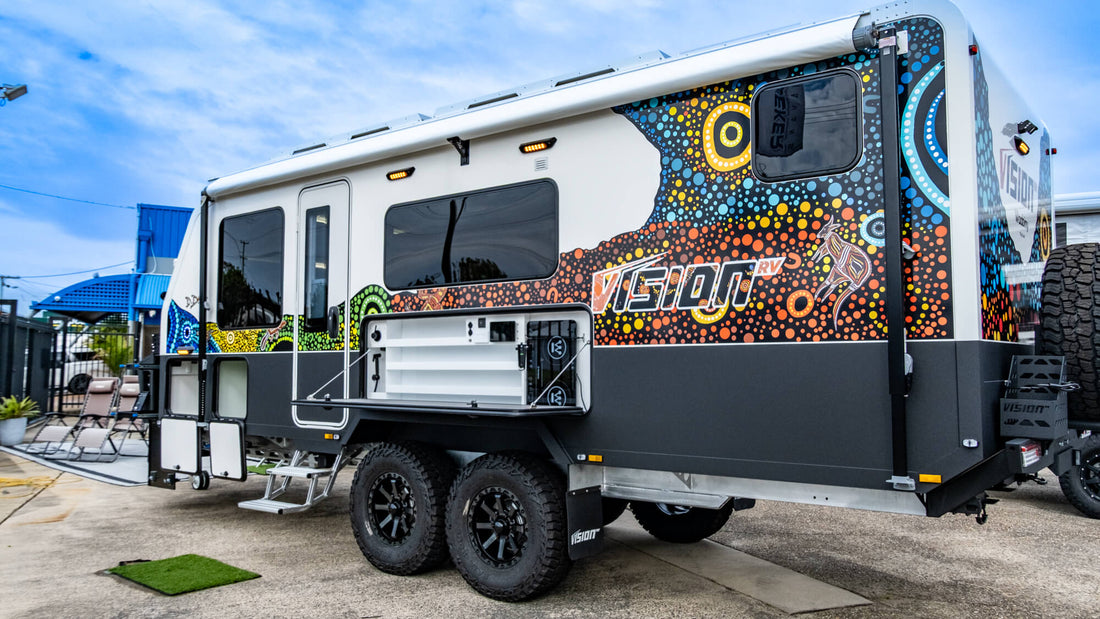

- Huge external kitchen with dual burner, shelves hot and cold tap, Garmin Dock, 12v cig, USB's, double 240v, antenna socket and tv bracket
- Massive 274 litre, fridge / freezer
- Reverse cycle air conditioner
- Gusto Dust Reduction System
- 3 in 1 microwave, grill & convection oven
- Reversing camera - single lens as standard, dual lens -optional
- Roll out awning
- 12V fans for each occupant (2x couples layout up to 5x for triple bunk)
- Bedside charging points USB 240V with LED reading lights
- Dimmable roof, overheads and floor warm LED strips
- Front load washing machine
- 24 inch TV with roof top antenna - optional
- TRUMA Gas heater controlled by Vario Digital Climate Control Panel - optional
Plumbing
- 3 x 90 litre fresh water tanks (270 litres total) + 1 x 90 litre optional extra
- 86 litre grey water tank plus 14 litre urine tank separately plumbed
- Dual external hot / cold showers, either side of tool box
- Water tank manifold allowing all tanks to be filled and drained independently
- TRUMA instant gas hot water system controlled by VARIO Digital Control Panel

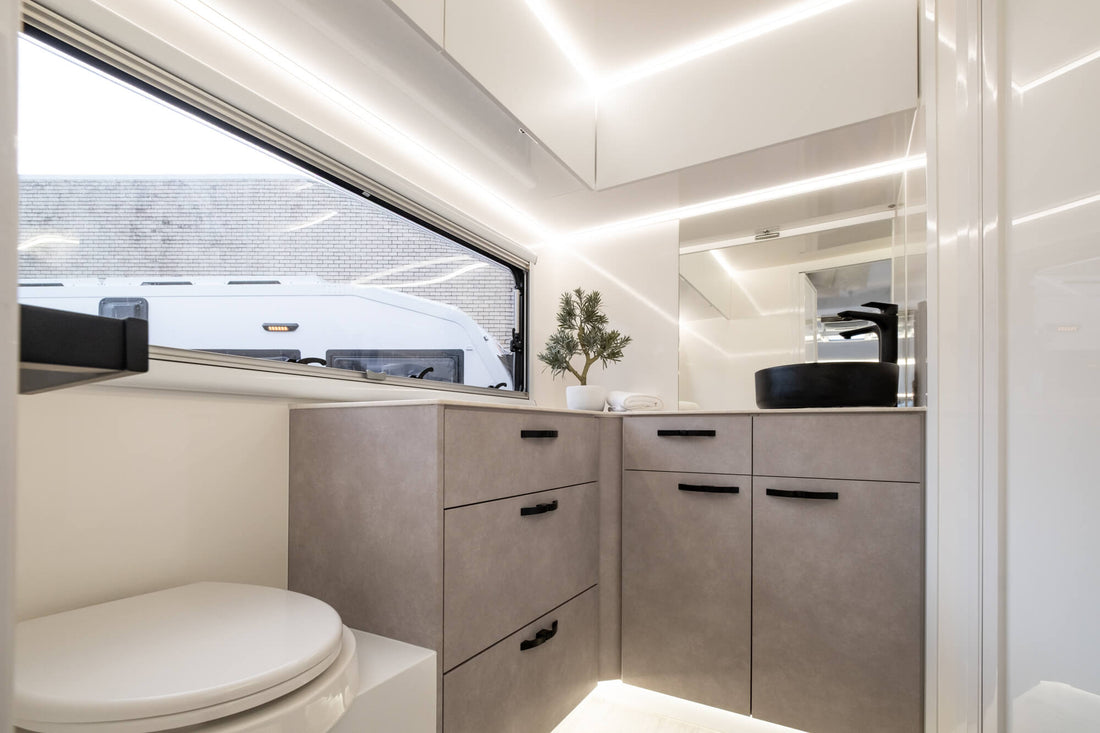

- Generous internal shower with channel drain
- Vision RV's simple compost toilet with urine tank plumbed to separate black tank and external outlet
DECALS / LIVERY
- Black Raptor Coated base protection strip around shell - installed post van assembly to ensure superior sealing. Optional rear bar Raptor Coating available
- High grade 3M Decals - holographic black camo and charcoal with colour changing pearl effect

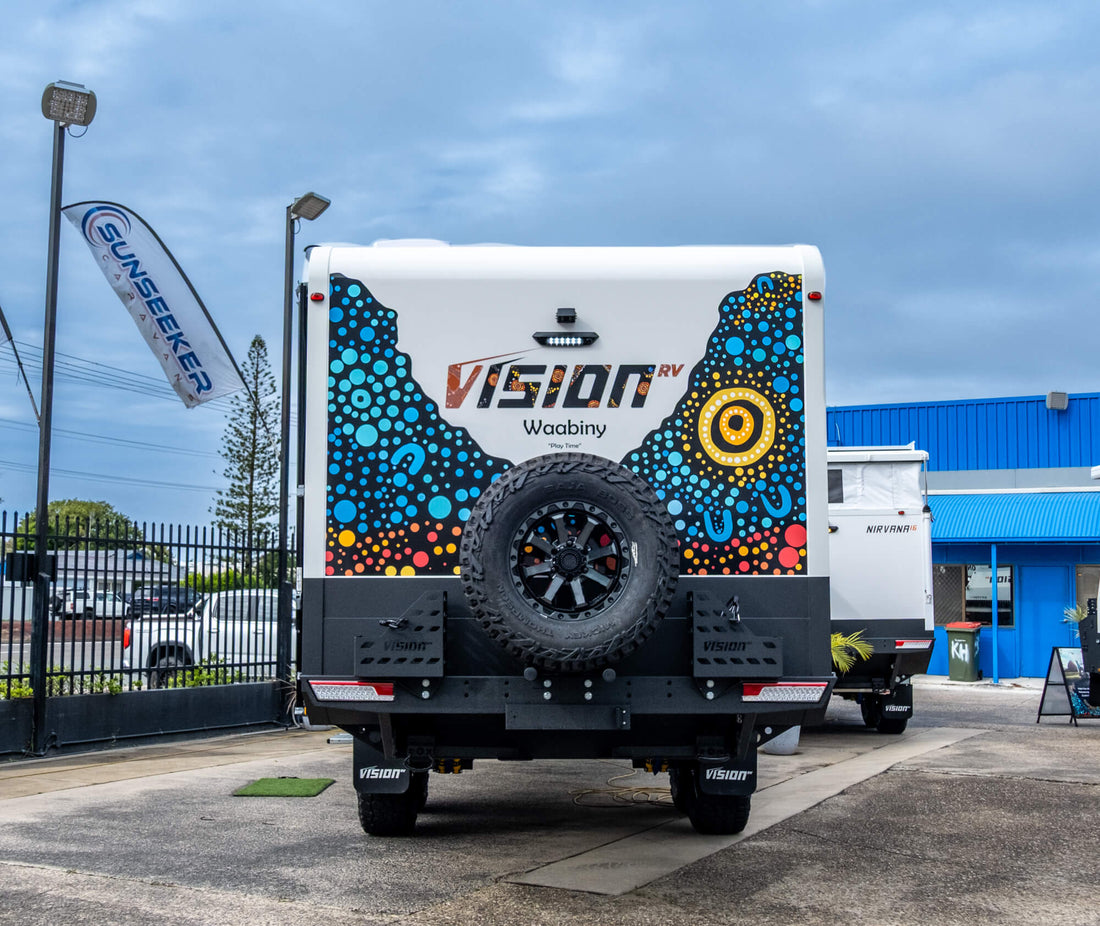

- Optional WAABINY Indigenous artwork - dark or light versions - meaning 'playtime'
- Optional KIAH LEUMEAH Indigenous artwork - Dark - meaning 'Beautiful place, here I rest'
Chassis
- Hot dipped galvanised chassis - 150mm x 50mm

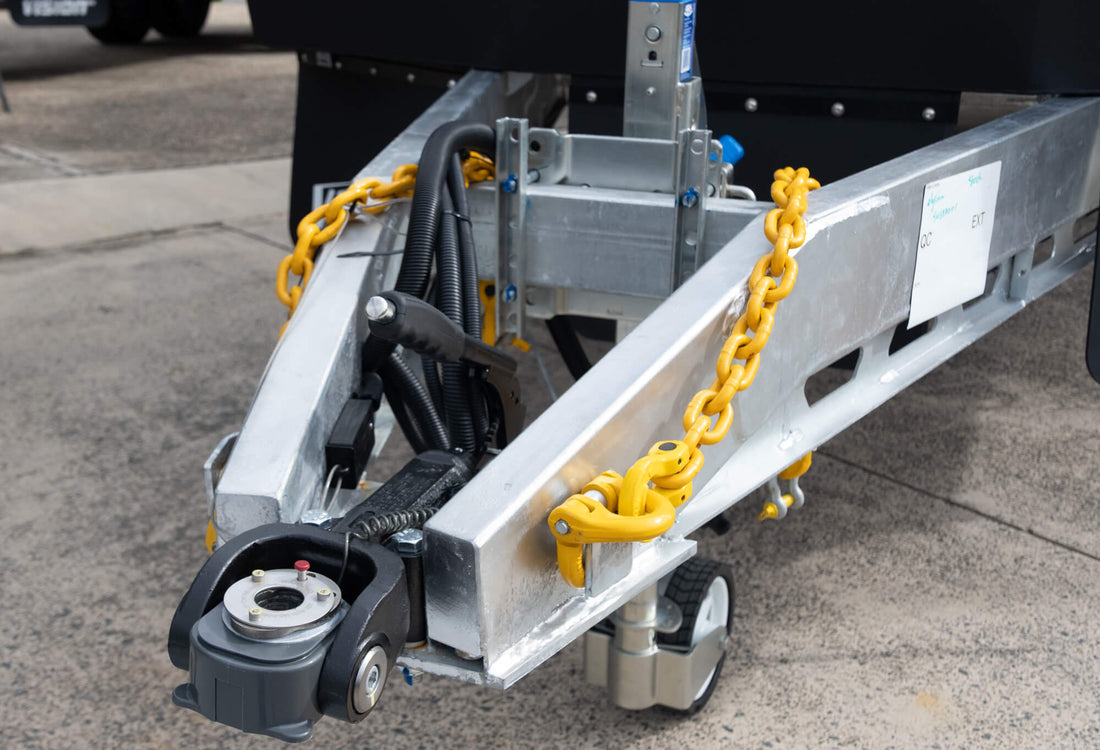

- Tandem axle 3500kg ATM with Cruisemaster D035 coupling (pre-approved to upgrade to 4500kg ATM and D045 Chains and Jockey wheel to match)
- 4500kg ATM and D045 Chains and Jockey wheel to match
- Heavy duty trailing arm independent airbag suspension, twin shock absorbers per wheel
- Ventilated disc brakes
- Japanese bearings
- Large off-road wheels and tyres (285/70/R17) + 35 offset allows for easy matching to tow vehicle. Five or six studs available with a 35" optional upgrade
- Spare wheel and tyre with upgrade available for second spare
- Heavy duty centre mounted jockey wheel
- Heavy duty rear recovery points of rear chassis rails and modular rear bar for Vision's range of bolt on accessories
- Heavy duty rear bar - Chassis extension providing superior departure angle and unrivalled rear protection strength and to facilitate mounting of accessories
EXTERNAL FEATURES
- Super strong monocoque composite shell construction providing unrivalled strength, durability, insulation standards and repairability
- Single piece honeycomb composite floor
- Unrivalled electrical assist door, connected to remote central locking for best in industry sealing and security
- Air compressor with outlet for tyre inflation and cleaning
- Dual jerry can holders and twin 4kg gas bottles in front box

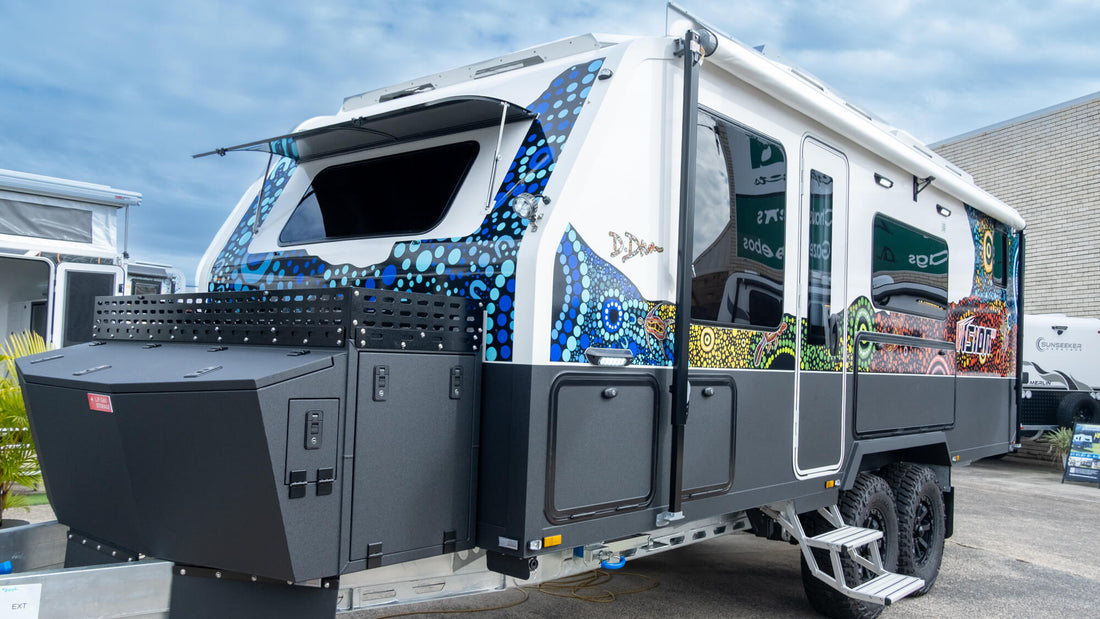

- Front storage box with dual sliding shelves and firewood rack, pole carrier and tapered front to act as a stone shield. Raptor coated for superior durability.
- Industry leading heavy duty aluminium extrusion joining all external walls
- Entire van including all cabinetry is 100% timber free construction
- Airbag Control: manual/wireless and auto levelling when stationary, multi situation ride height

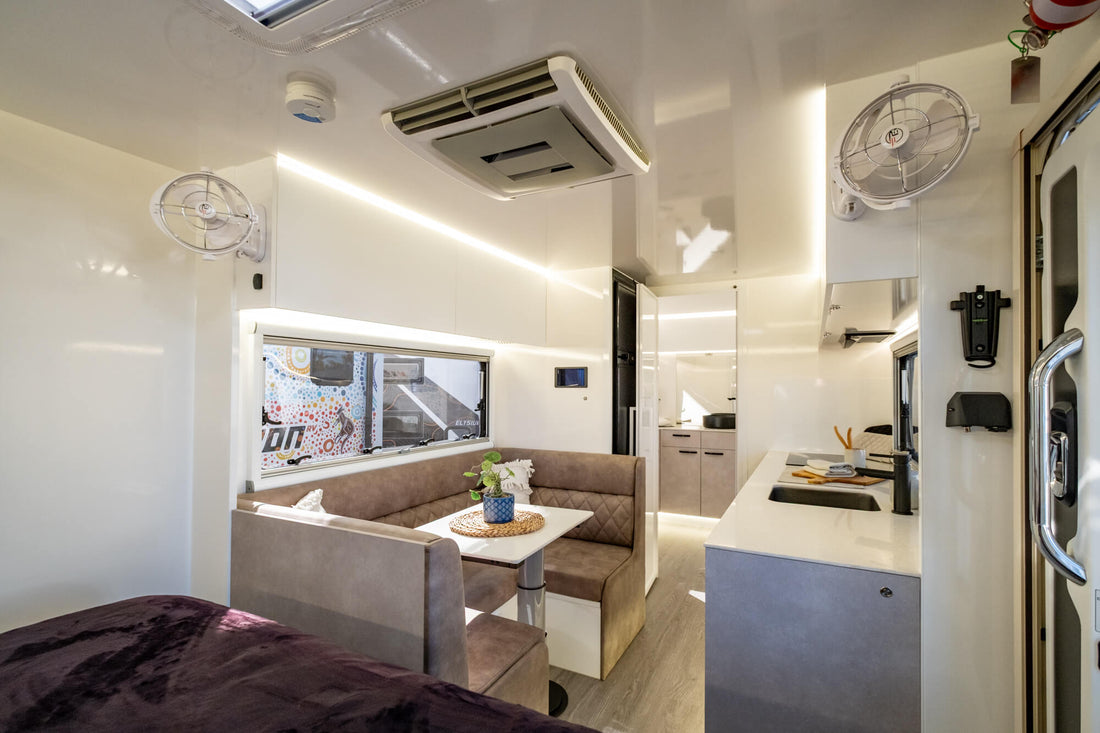

Internal Features
- Flat panel Euro Style windows with block out blind and flyscreen
- Aluminium cabinetry - laser cut, folded and powder coated
- Lightweight honeycomb door and draw facias
- Solid surface commercial grade acrylic bench and table tops
- Soft close draw runners

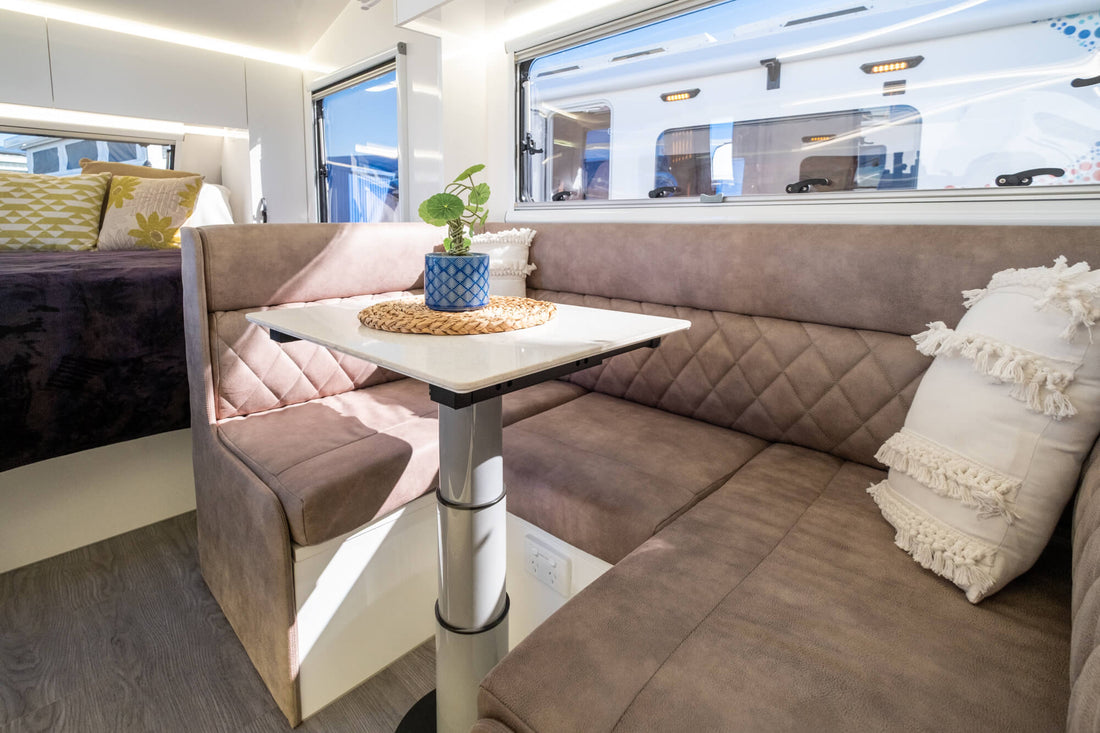

- Stylish automotive leather lounges in a selection of colours
- Class leading storage

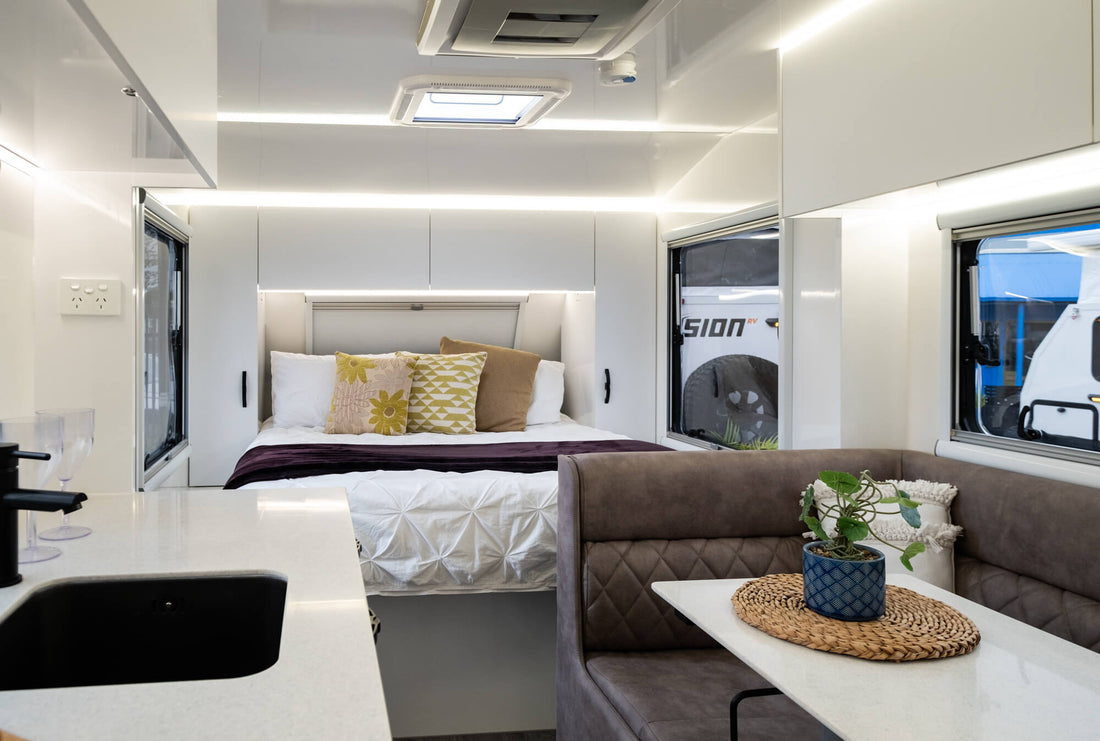

- Premium caravan queen size pillow-top mattress
- Electric lift under bed storage compartment (for North South Bed configuration)
- Remote central locking door for reliable seal and security
Elysium MY2025 Feature update
Visit our YouTube channel for additional walk throughs!
