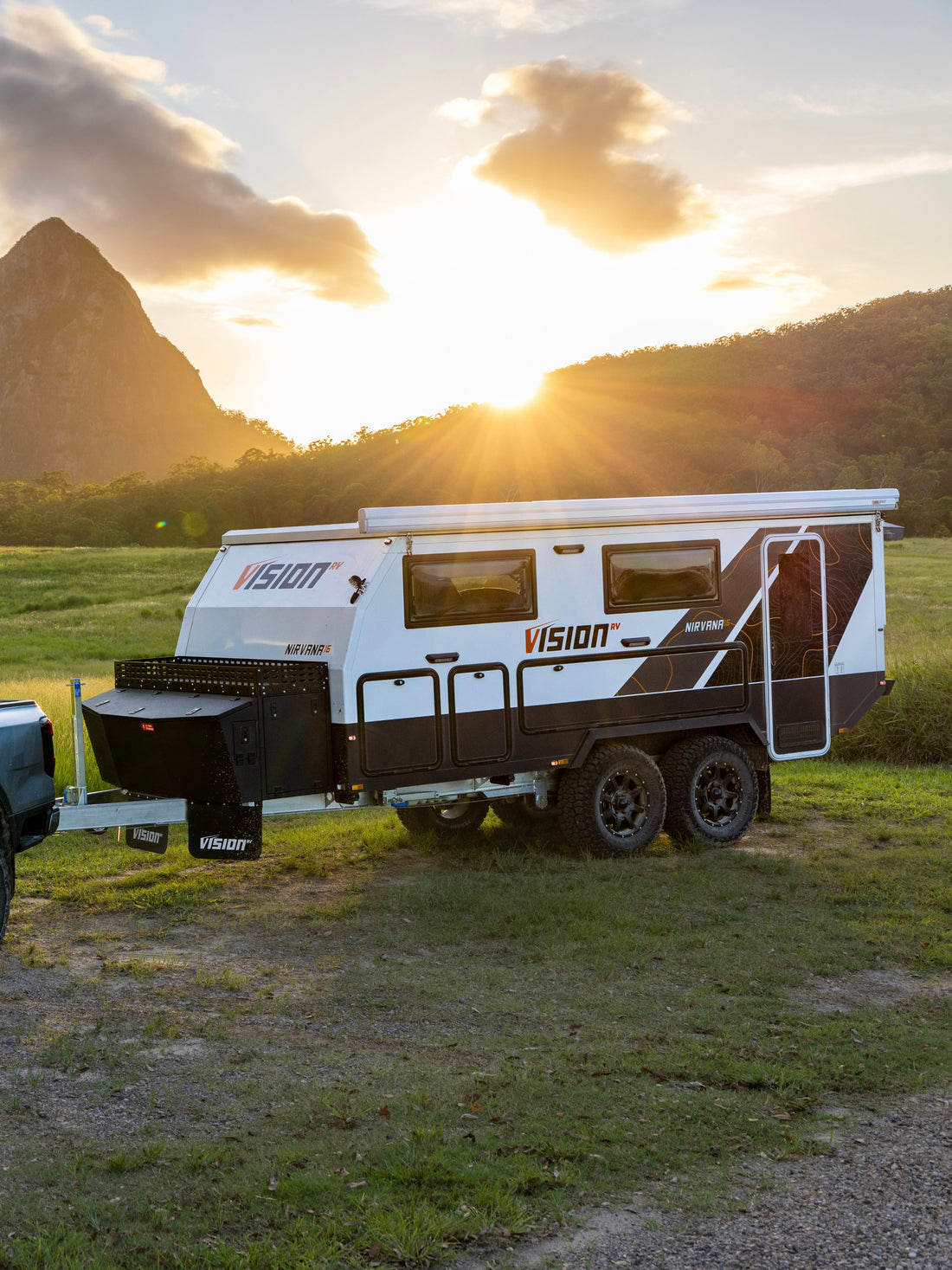

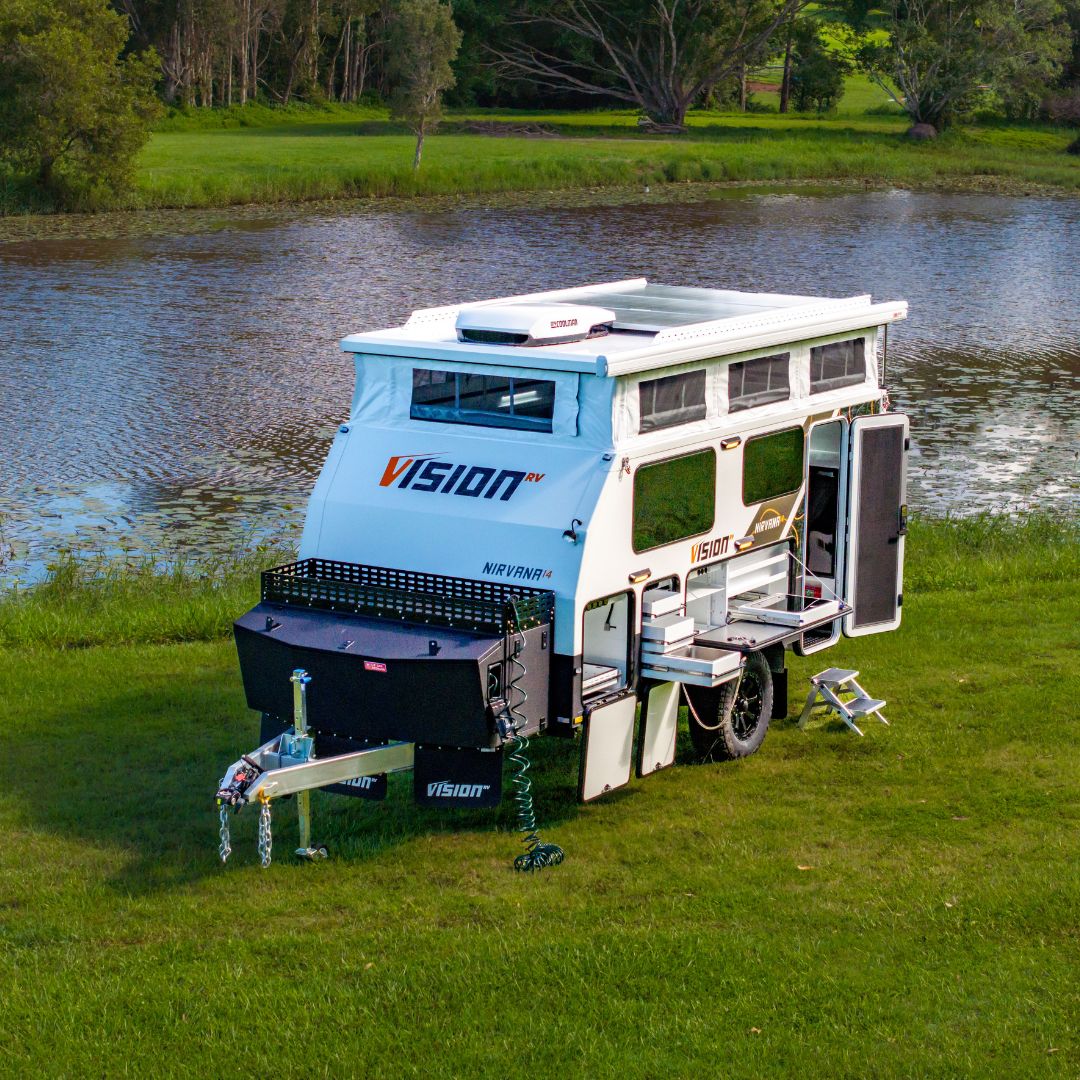

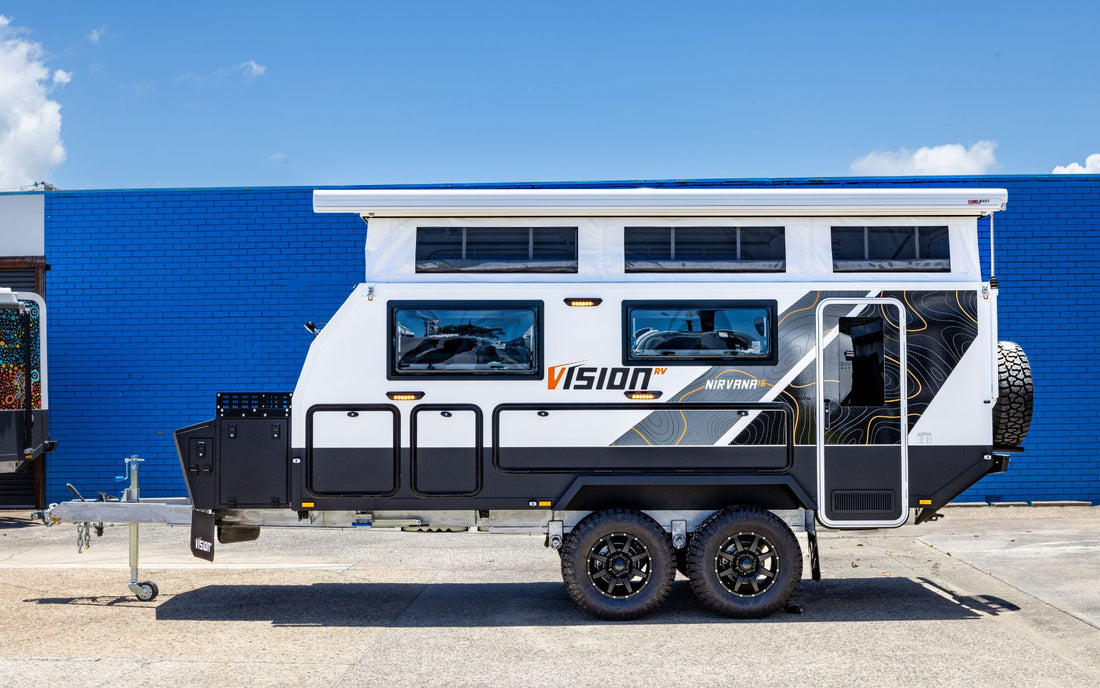

NIRVANA 16A POPTOP / HARDTOP
A roomier solution for solo or couples, our ultimate in small-size luxury RV that will go anywhere your vehicle will go.
ATM: 3500KG
TARE 2500KG*
OVERALL LENGTH: 7.54m / TRACK WIDTH: 1.78m
APPROX TRAVEL HEIGHT: 2.6m
WATCH OUR VIDEO
Floor Plan
Configurations can change depending on model! Come visit us on the Sunshine Coast to see this in person.
Vision RV 16A
Gallery
HIGHLIGHTED FEATURES
(THERE IS MORE!)

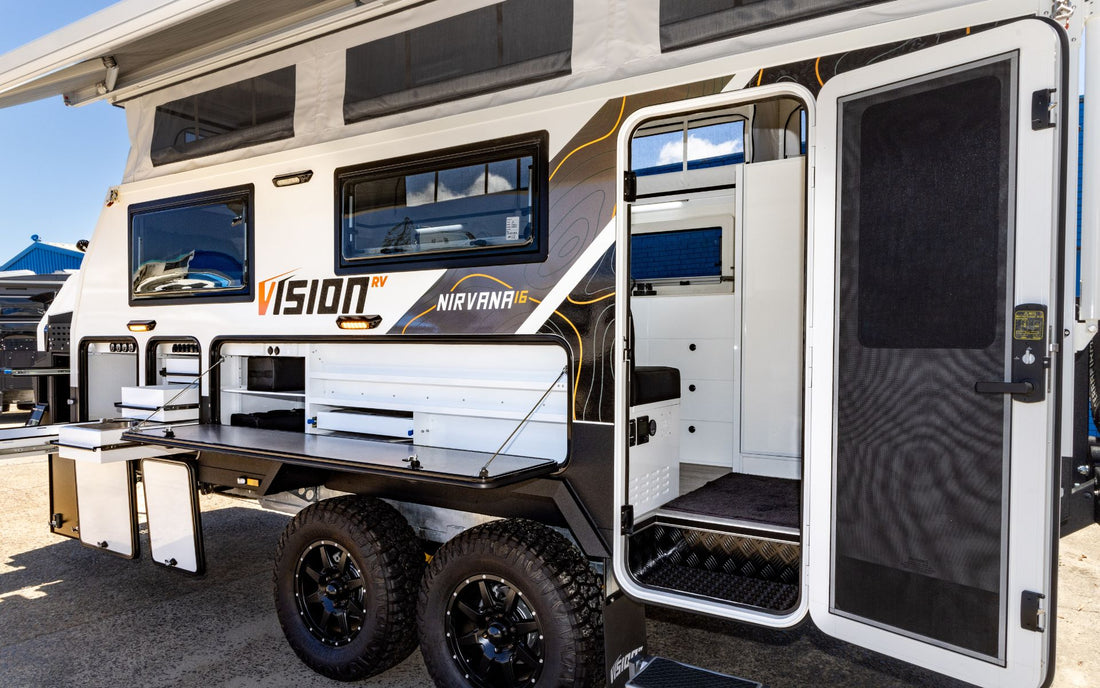

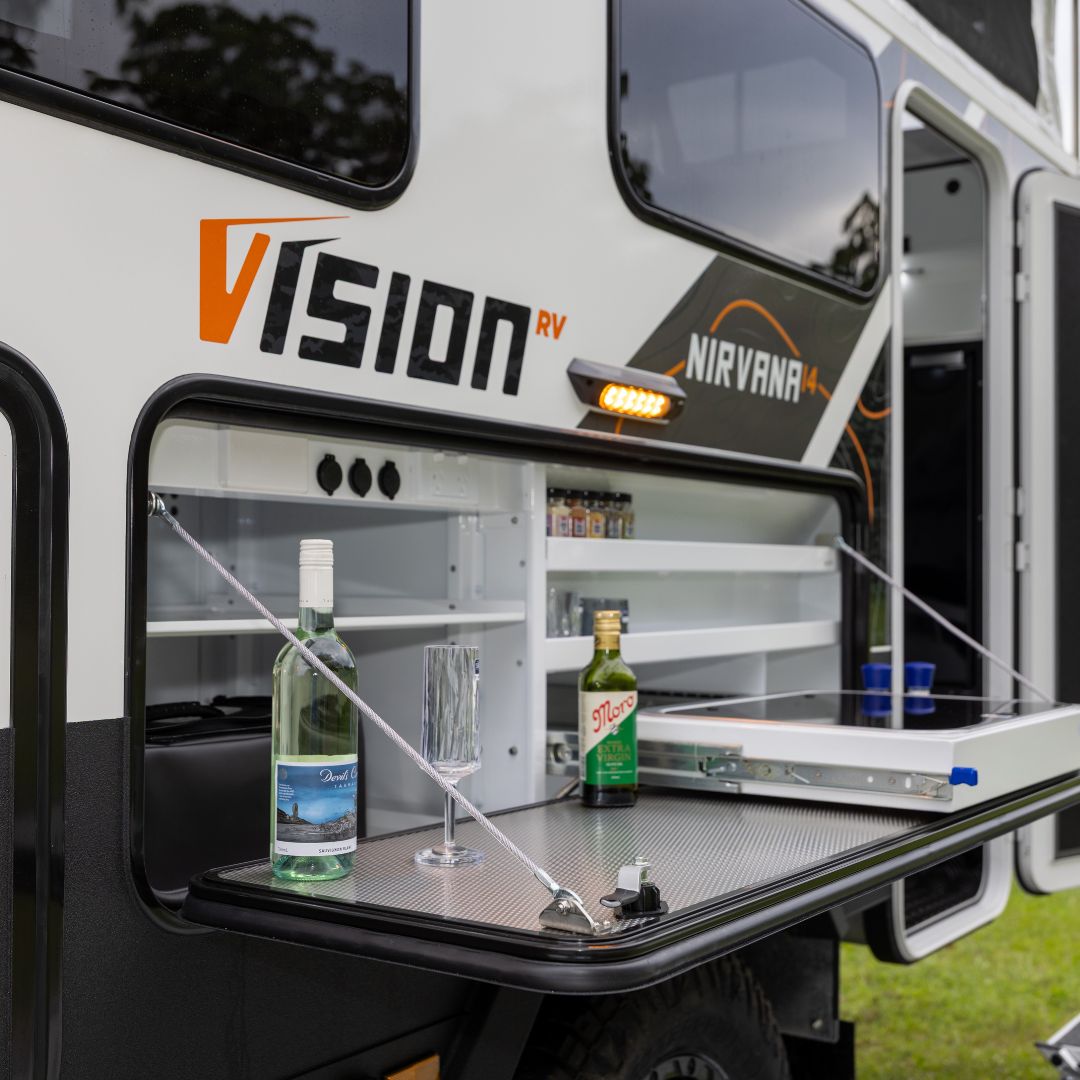

- Huge external kitchen, 3 burner cooker, sink with hot & cold tap, shelves, pantry nooks, slide out pantry draws and powerpoints
- Vitrifrigo 110ltr fridge & icebox
- Optional reverse cycle air-conditioner
- Endless solar and battery with powerpoints at all logical locations
- Dedicated fans, reading lights and charging points for King size master bed
- Front storage box with dual sliding shelves and firewood rack / shelf
7 Year Limited Warranty on all Models
Feature List
Electrical
- POPTOP: 460Ah lithium battery, 3000W/100A Enerdrive Inverter / Charger, 990W solar
- HARDTOP: 460Ah lithium battery, 3000W/100A Enerdrive Inverter / Charger, 800W solar
- Enerdrive 40amp DC-DC battery charger with MPPT
- Single Enerdrive 40A MPPT Solar Controller
- Enerdrive ePro PLUS battery monitor
- White/amber external lights, both sides and rear
- Front external LED spotlight on swivel mount
Appliances

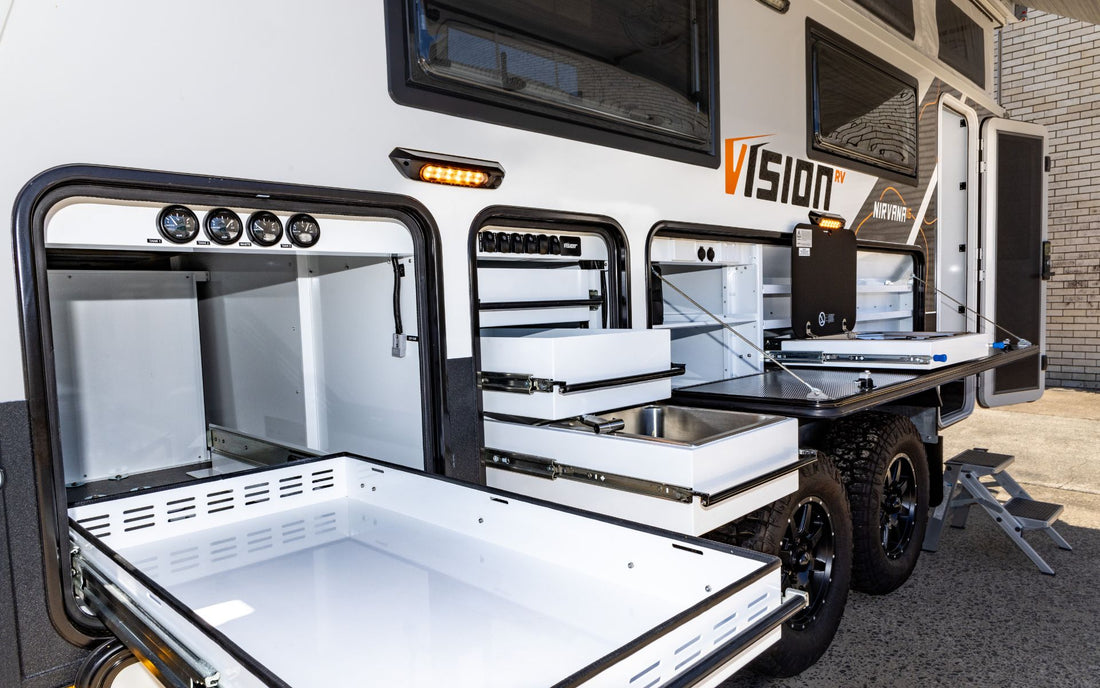

- Huge external kitchen, 3 burner cooker, sink with hot and cold tap, shelves, pantry nooks, slide out pantry draws, 12V cig, USB's and double 240v
- Vitrifrigo 110 litre upright compressor fridge & icebox
- POPTOP Optional Reverse cycle air conditioner. HARDTOP as standard
- Optional Gusto Dust Reduction System
- Optional Induction cooktop
- Reversing camera - optional dual lens with monitor, single lens standard
- Fiamma / Cassette awning
- 2 x 12V fans in main bed area
- Bedside charging points USB 240V with LED reading lights
- Individual touch LED strips throughout van
- Optional front load washing machine
- Optional 24 inch TV with roof top antenna
- Optional TRUMA Gas heater controlled by Vario Digital Climate Control Panel
Plumbing
- 3 x 90 litre fresh water tanks (270 litres total)
- Grey tank divided into 75l grey water tank plus 14 litre urine tank separately plumbed
- Dual external hot / cold showers, either side of tool box
- Water tank manifold allowing all tanks to be filled and drained independantly
- TRUMA instant gas hot water system controlled by VARIO Digital Control Panel
- Internal shower with channel drain
- Vision RV's simple ZERO SMELL compost toilet with urine tank plumbed to separate grey tank partition and external outlet
DECALS / LIVERY
- Black Raptor Coated base protection strip around shell - installed post van assembly to ensure superior sealing.
- High grade 3M Decals - holographic black camo and charcoal with colour changing pearl effect
- WAABINY Indigenous artwork - dark or light versions - meaning 'playtime'
- KIAH LEUMEAH Indigenous artwork - Dark - meaning 'Beautiful place, here I rest'
Chassis
- Hot dipped galvanised chassis - 150mm x 50mm
- Dual axle 3500kg ATM with Cruisemaster D035 coupling (up to 900kg payload subject to model and options fitted)

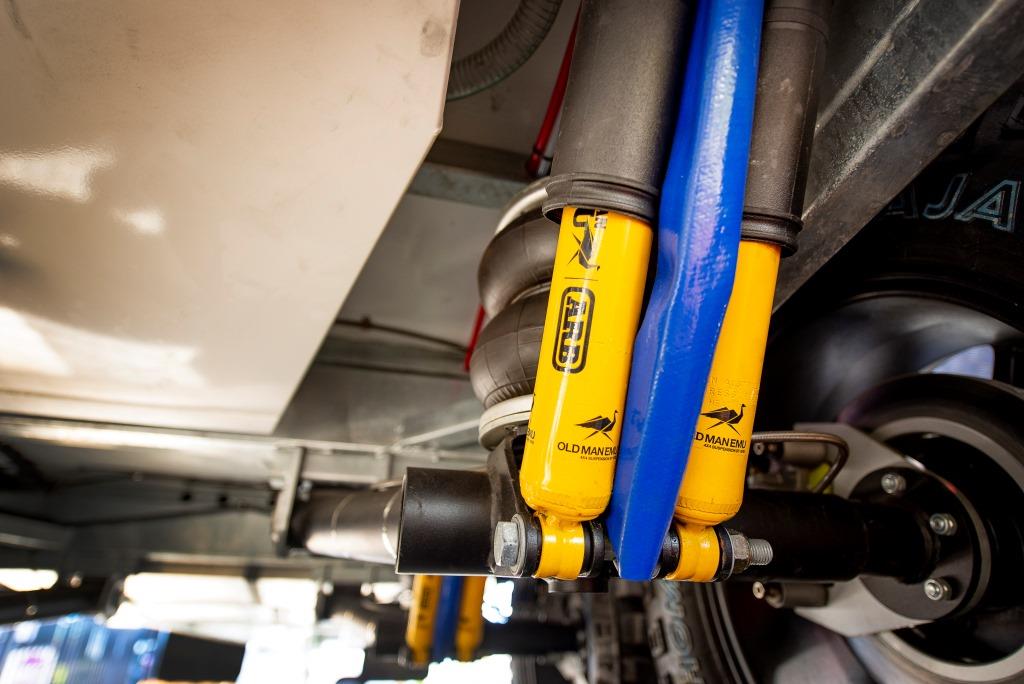

- Heavy duty trailing arm independent airbag suspension, twin ARB shock absorbers per wheel
- Ventilated disc brakes, large parallel bearings
- Large off-road wheels and tyres (285/70/R17) + 35 offset allows for easy matching to tow vehicle. Five or six studs available with a 35" optional upgrade available
- Spare wheel and tyre with upgrade available for second spare
- Heavy duty centre mounted jockey wheel
- Heavy duty rear recovery points on rear chassis rails
- Heavy duty rear bar - Chassis extension providing superior departure angle and unrivalled rear protection strength and to facilitate mounting of accessories
EXTERNAL FEATURES
- Super strong monocoque composite shell construction providing unrivalled strength, durability, insulation standards and repairability
- Aluminium entry door with security and fly screen
- Single piece honeycomb composite floor
- Air compressor with outlet for tyre inflation and cleaning
- Dual jerry can holders and twin 4kg gas bottles in front box

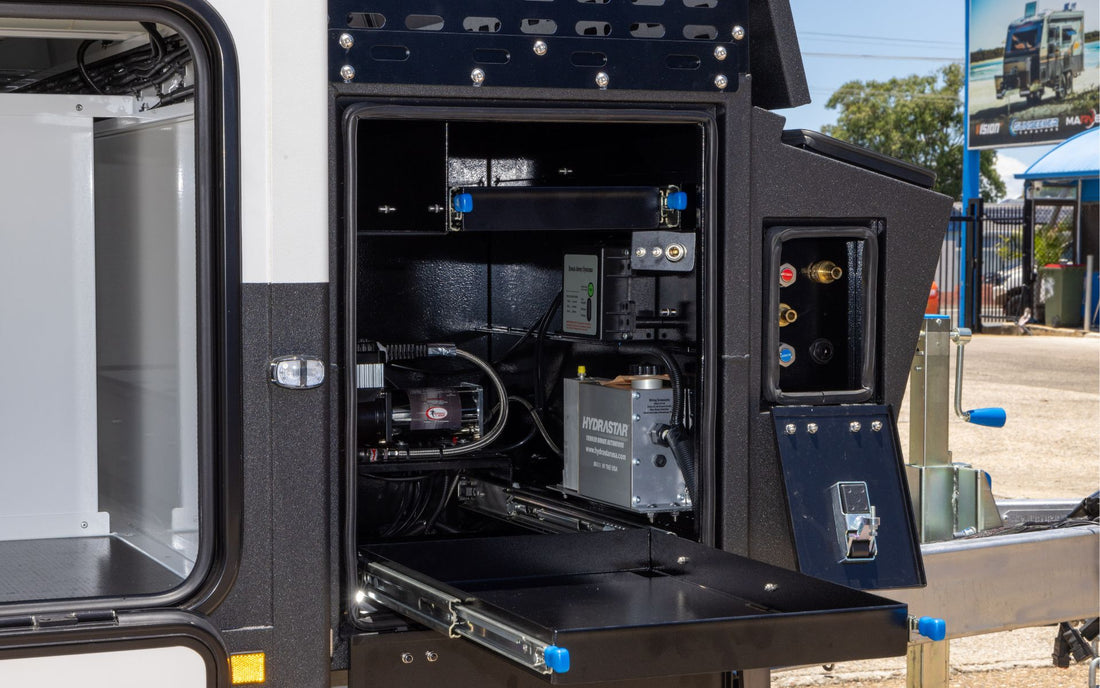

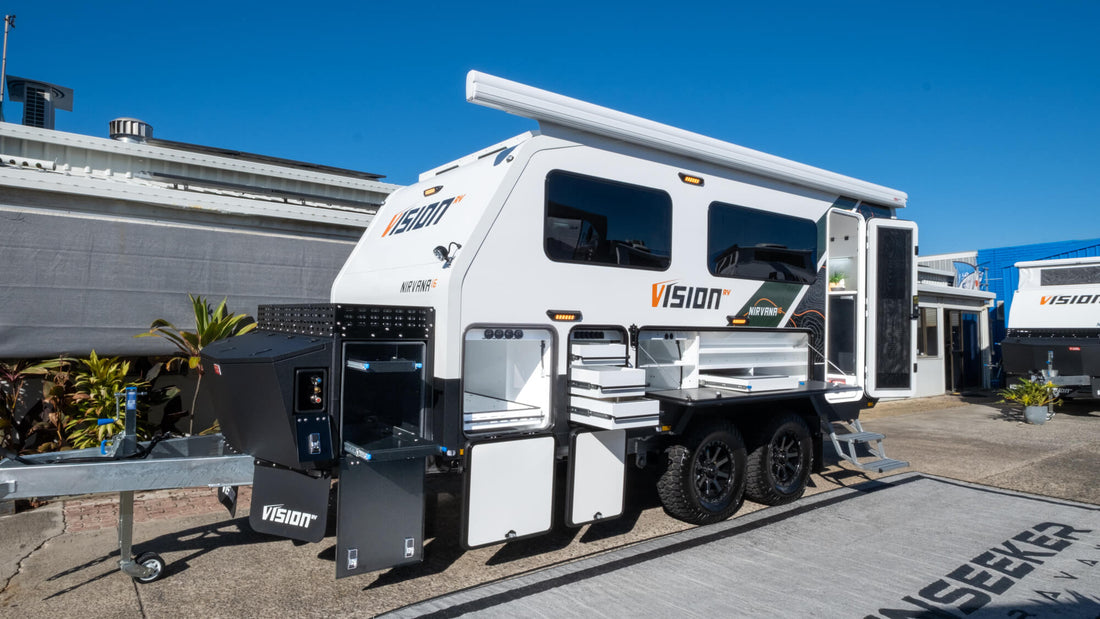

- Front storage box with dual sliding shelves and firewood rack, pole carrier and tapered front to act as a stone shield. Raptor coated for superior durability.
- Industry leading heavy duty aluminium extrusion joining all external walls
- Entire van including all cabinetry is 100% timber free construction
- Electric roof raiser
- Wireless, remote airbags to safely navigate challenging terrain with variable loads

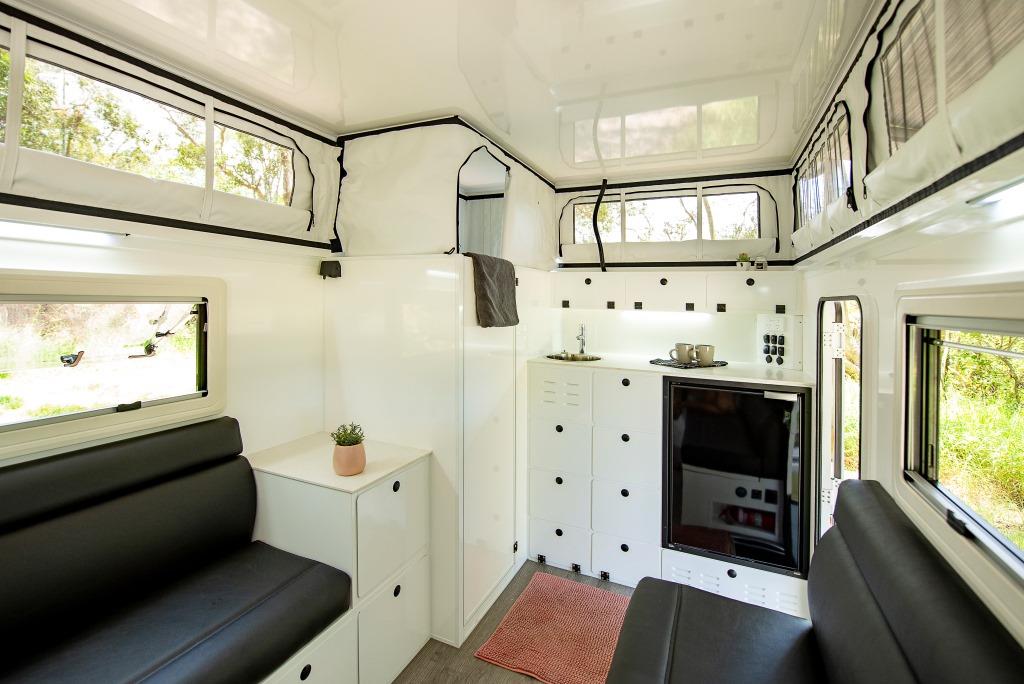

Internal Features
- Double glazed euro styled windows
- Aluminium cabinetry - laser cut, folded and powder coated
- Solid surface commercial grade acrylic bench
- Stylish automotive leather lounges
- Class leading storage
- Durable white poptop with several zippable windows to allow maximum ventilation
- Premium king size pillow-top mattress
